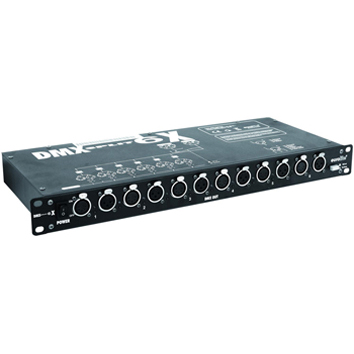

EUROLITE SPLIT 6X DMX SPLITTER

A lot of fun, without any risk is assured with this DMX Split. There are two aspects, that are responsible for the risk to be almost completely eliminated: One DMX-line is partitioned into six lines and due to the fact, that all outputs are seperated galvanically, one broken line will not cause a blackout. When a lighting performance without any disturbance is aspired, then this DMX Split is a must-have. Splitter with 6 galvanized isolated outputs, 3-pin & 5-pin XLR sockets
DMX splitter for splitting one DMX input signal to 6 DMX outputs
Input and outputs galvanically isolated
Connections XLR 3-pin and 5-pin
Every DMX output with independent driver and data indicator
Input and outputs with a set of respective power supply and internal fuse
Rack mounting
Power connection: Fixed Power supply cord with safety plug (M)

TECHNICAL SPECIFICATIONS
DMX512 output: 3-pin or 5-pin XLR connector
Dimensions (L x W x H): 483 x 200 x 50 mm
Weight: 3,23 kg
Power consumption: 15 W
Height: 4,45 cm
Depth: 20 cm
Width: 48,3 cm
Power connection: Fixed Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
