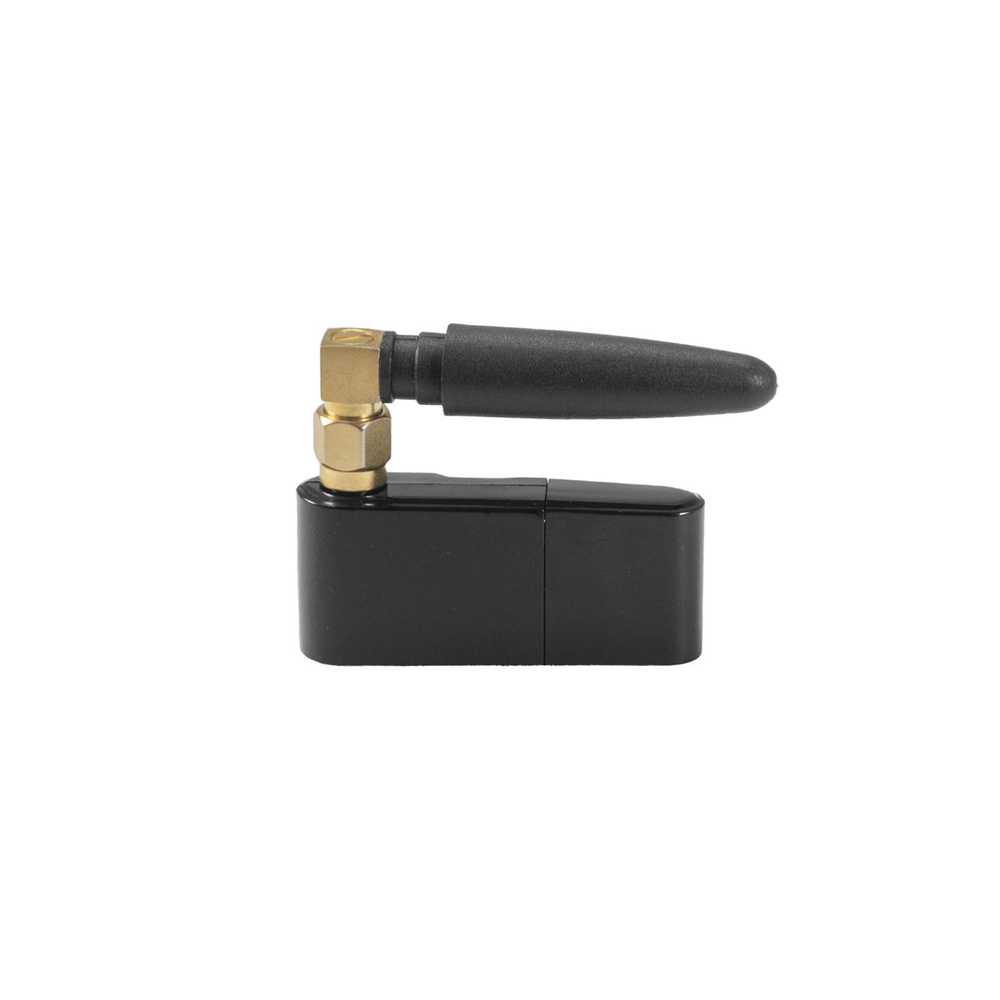

EUROLITE WIRELESS MINIATURE DMX TRANCEIVER 2.4 GHZ, PHANTOM POWERED

Wireless miniature DMX transceiver 2.4 GHz, phantom powered
Compact miniature DMX transmitter/receiver for the wireless transmission of up to 512 DMX channels

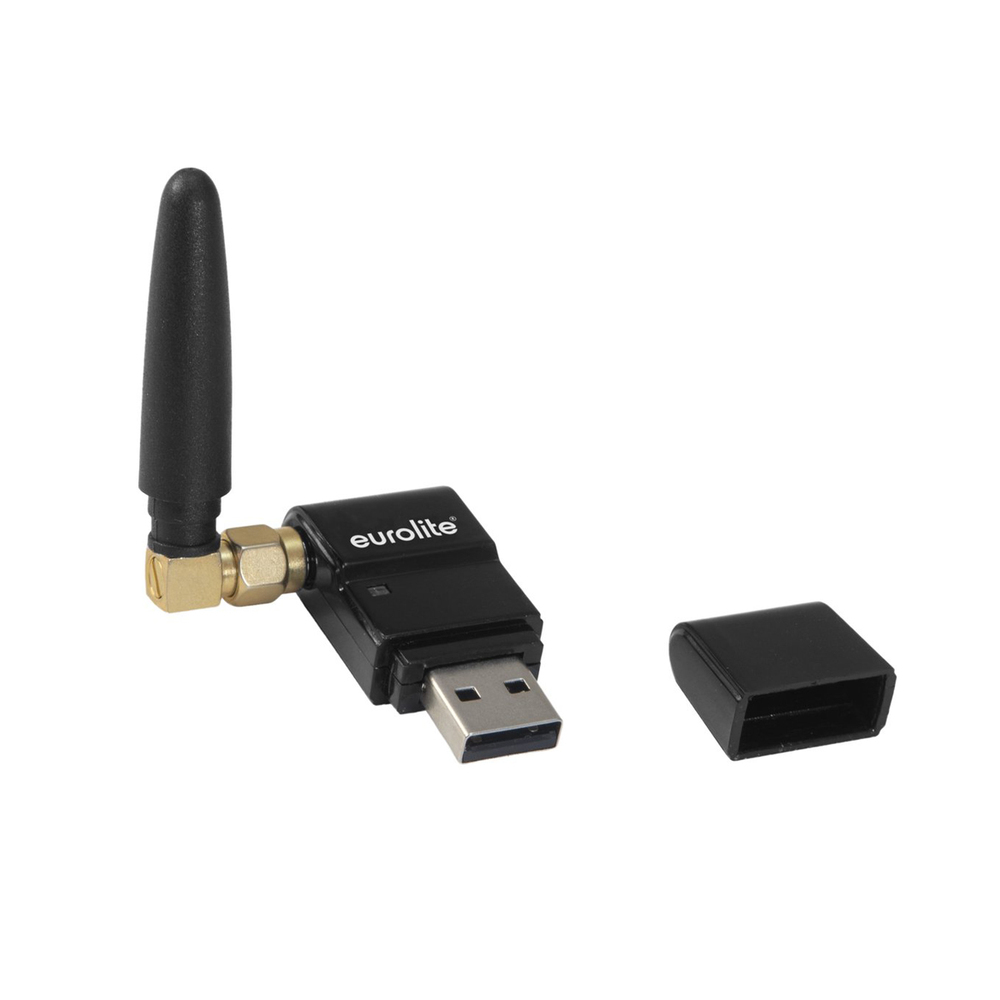

User-friendly USB plug with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver to be used as transmitter or receiver
Requires 5 V phantom power for operation
2.4 GHz ISM band - license-free worldwide
Power connection: Mains Input Socket (M) USB A (M) connectable version
Control: QuickDMX USB; QuickDMX; DMX

TECHNICAL SPECIFICATIONS
Power supply: 5 V DC phantom power
Carrier frequency: 2.4 GHz ISM band, 78 channels
Modulation: GFSK
Coverage: 400 m (line-of-sight)
Parallel operation: max. 6 transmitters
QuickDMX connection: USB, type A
DMX channels: 1 universe (512 channels)
Dimensions with antenna (L x W x H): 86 x 40 x 11 mm
IP classification: IP20
Color: Black
Weight: 0,0147 kg
DMX channels: 512
Power connection: Mains Input Socket (M) USB A (M) connectable version
Width: 8,6 cm
Depth: 4 cm
Height: 1,1 cm

(70064704)
