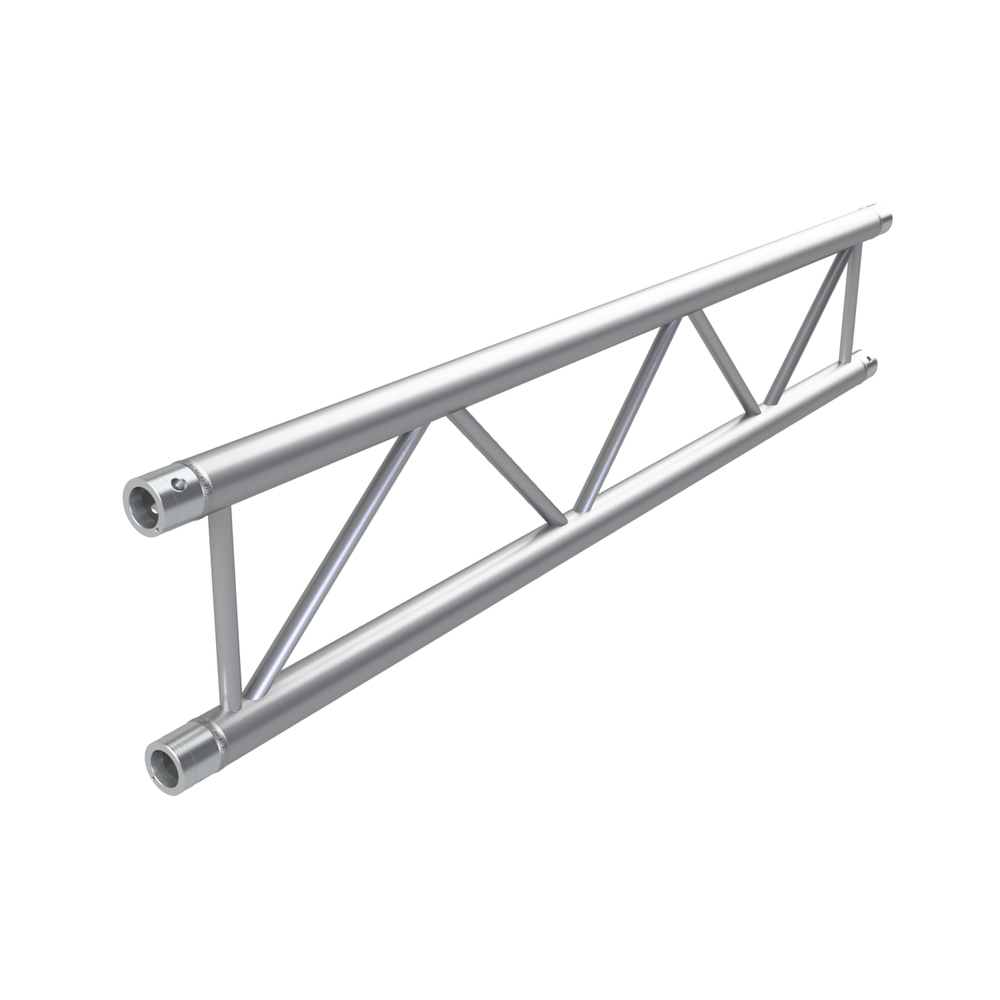

EUROTRUSS 2 POINT TRUSS 2M

The FD32, 2m Ladder truss, a truss for vertical and horizontal rigs, this truss made out of two main tubes combined with the eurotruss bracing pattern is already a great start. Together with the Tolerance free conical connector system the straight elements lend themselves perfectly to use a span exposed to bending stress.
Combined with FD34 Truss they possess a broad range of applications.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).

Facts
TUV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
Compatible with FD34

TECHNICAL SPECIFICATIONS
Height 290 mm / 11.42 in
Width 50 mm / 1.97 in
Main Tube 50 x 2 mm / 1.97 x 0.08 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight ~3 kg/m / ~2 lbs/ft
Pin Position Diagonal
Material EN AW-6082 T6
Connection CS1 ? CON
