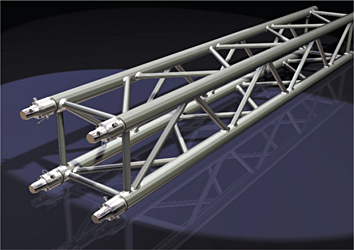

EUROTRUSS SQUARE TRUSS 1m

FD34 straight 1m elements lend themselves to use as span exposed to bending stress resistant span up to 16m or as standard tower element. FD34 using the 2mm wall thickness assures durability and strength.
Designed for high-frequency usage or installations, which demands higher loading. Ideal trussing system for rental, touring and exhibition companies.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).

Facts
T?V approved
Also available in any non-standard length and shape
Tolerance free conical connector system
FD34 is also available as a Tower Truss

TECHNICAL SPECIFICATIONS
Height 290 mm / 11.42 in
Width 290 mm / 11.42 in
Main Tube 50 x 2 mm / 1.97 x 0.08 in
|Braces 20 x 2 mm / 0.79 x 0.08 in
Weight ~6 kg/m / ~4 lbs/ft
Pin Position Diagonal
Material EN AW-6082 T6
Connection CS1 - CON
