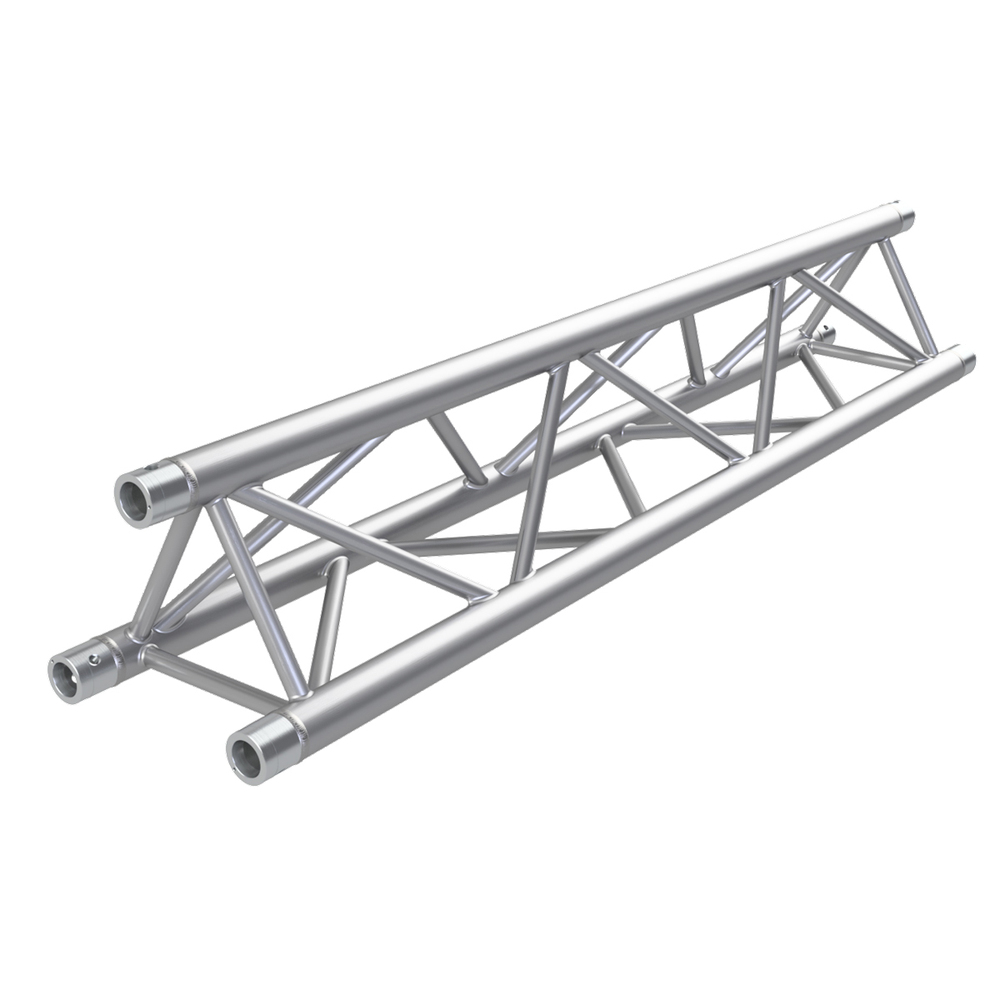

EUROTRUSS TRIANGLE TRUSS 0,5m

FD33, 0,50m, the triangular truss with equilateral profile geometry for larger loads.
The FD33 straight elements lend themselves perfectly for making bending stress resistant spans up to 12 meters (39 feet). Designed for high frequency usage or installations, which demands higher loading.
Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).

Facts
TUV approved
Also available in any non-standard length and shape
Tolerance free conical connector system

TECHNICAL SPECIFICATIONS
Height 258 mm / 10.16 in
Width 290 mm / 11.42 in
Main Tube50 x 2 mm / 1.97 x 0.08 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight ~4,5 kg/m / ~3 lbs/ft
Pin Position Diagonal
Material EN AW-6082 T6
Connection CS1 - CON
