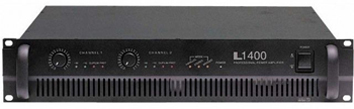

INTER-M POWER AMPLIFIER 2x450W

Code: L-1400

Internet Price

1075,00€

Catalog Price: 1193,62€ / PIECE

OUT OF STOCK

Add to Compare list

Free Shipping for online orders over 69€

Description

Controls :
Front : Power on/off switch, attenuator, LED indicators
Rear : Mode seletor switch (Stereo/Bridged Mono/Parallel HPF 50Hz/30Hz/off switch, limiter on/off switch)

Connectors :
Input : Combination jack and XLR jack (link)
Output : One 5-way binding post and one SpeakonTM per channel
Indicators : Power(Blue), Protection(Red), Clip/Limiter(Red), Signal(Green), Mode Selector(Yellow)
Filters : 30Hz HPF, 50Hz HP
Protection : Turn-on delay, thermal, DC fault, PC limiter, RF, Clip-limiter, short circuit, open circuit
Cooling : Continuously variable speed fan, front to rear air flow
Power Source : 100-120VAC or 220-240VAC; 50/60Hz
(supplied AC mains transformer depends on country requirements)
Power Consumption (1/8 power, RL=4 Ω) :
120VAC : 7A
230VAC : 3.5A
Weight : 14.4kg/31.7b
Dimensions (WxHxD) : 482x88x369mm/19x3.5x14.5in

Manufacturer

INTER-M
Category

AMPLIFIERS
Use

POWER AMPLIFIERS
Measurement Unit

PIECE
Warranty Months

12
Input Inpendance

20kΩ
Depth (cm)

36.9
AC Line Voltage and Frequency Configurations Available

AC 100V/120V 50/60Hz, 230V/ 240V 50/60Hz
Height (cm)

8.8
Weight (Kg)

14.4
Power Output

450
Rack Installation Possible

Yes
Order Quantity

1
Channels

2
Power Output W/4Ω

450
Signal to Noise Ratio (dB)

100
Total Harmonic Distortion (THD) (full rated power, 20Hz to 20kHz) <

0.03%
Frequency Response (at 1W, 4/8Ω) (dB) ±

0/1dB 20Hz~20kHz ; -3dB : 5Hz~70kHz
Amplifier Type

Power Amplifier
Catalog

Professional
Crosstalk (below rated power) 20Hz to 1kHz > (db)

85
Load Impedance

Ohm
Power Output W/8Ω

280
Power Output W/Brigde Mode/8Ω

1400
Voltage Gain (dB)

32
Input Sensitivity

2.7dBu
Width (cm)

48.2
