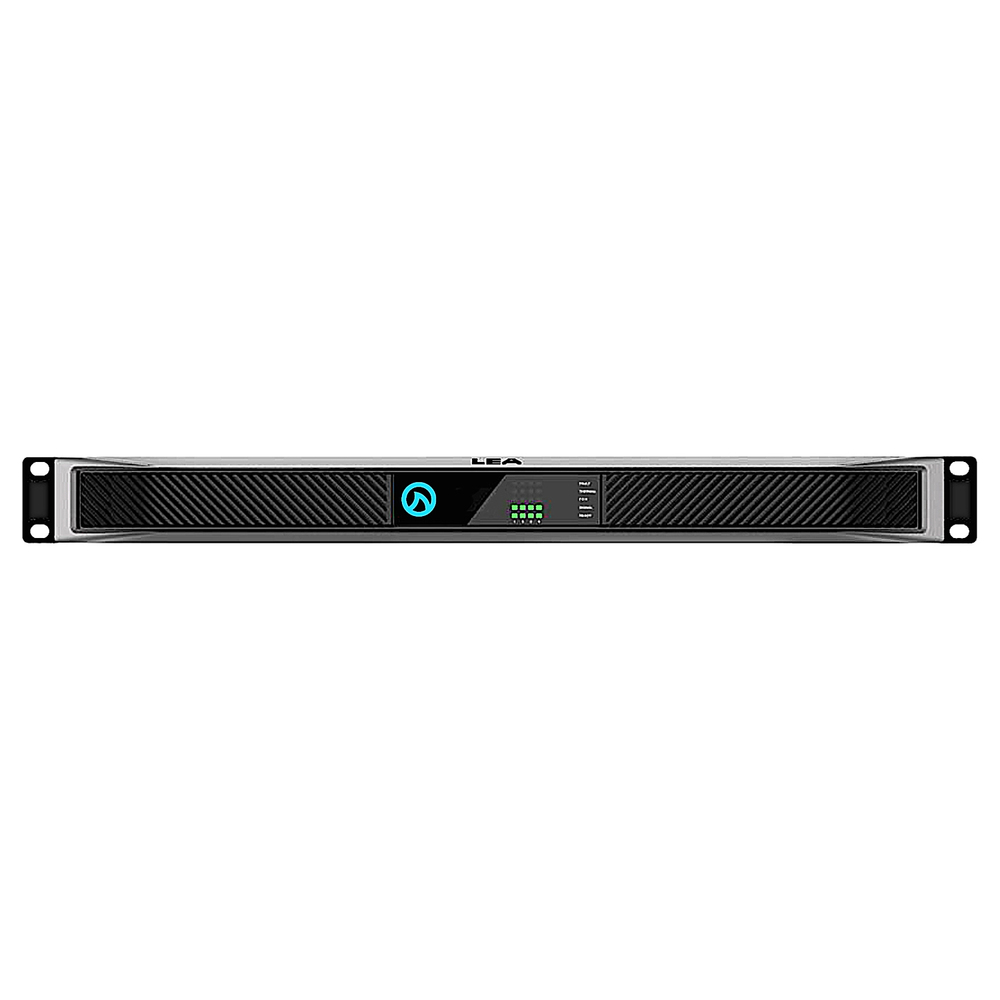

LEA POWER AMPLIFIER 4X160Wrms

Code: CONNECT 164

OUT OF STOCK

Add to Compare list

Free Shipping for online orders over 69€

Power amplifier 4x160Wrms @ 4Ω, 8Ω, 70V and 100V (4x80W @ 2Ω). Internal DSP w/ Crossovers, IoT Device with built in WiFi Hotspot, Wifi or FAST Ethernet connectivity and Highly Efficient Power Supply with Class D Output Stage. Dimensions: 362mm x 482mm x 1U, Weight: 9.1 Kg

Manufacturer

LEA
Category

AMPLIFIERS
Use

POWER AMPLIFIERS 100V
Measurement Unit

PIECE
Warranty Months

12
Depth (cm)

36.2
AC Line Voltage and Frequency Configurations Available

100VAC - 240VAC +/- 15% 50Hz or 60Hz
Height (cm)

4.4
Power Output W/100V

160
Weight (Kg)

5.56
Power Output

160
Rack Installation Possible

Yes
Order Quantity

1
Channels

4
Power Output W/4Ω

160
Signal to Noise Ratio (dB)

105
Total Harmonic Distortion (THD) (full rated power, 20Hz to 20kHz) <

0,1
Frequency Response (at 1W, 4/8Ω) (dB) ±

20Hz - 20kHz
Amplifier Type

Power Amplifier
Catalog

Professional
Crosstalk (below rated power) 20Hz to 1kHz > (db)

70dB (20Hz to 20kHz)
Load Impedance

100V/70V, Ohm
Power Output W/8Ω

160
Input Sensitivity

Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
Width (cm)

48.2
