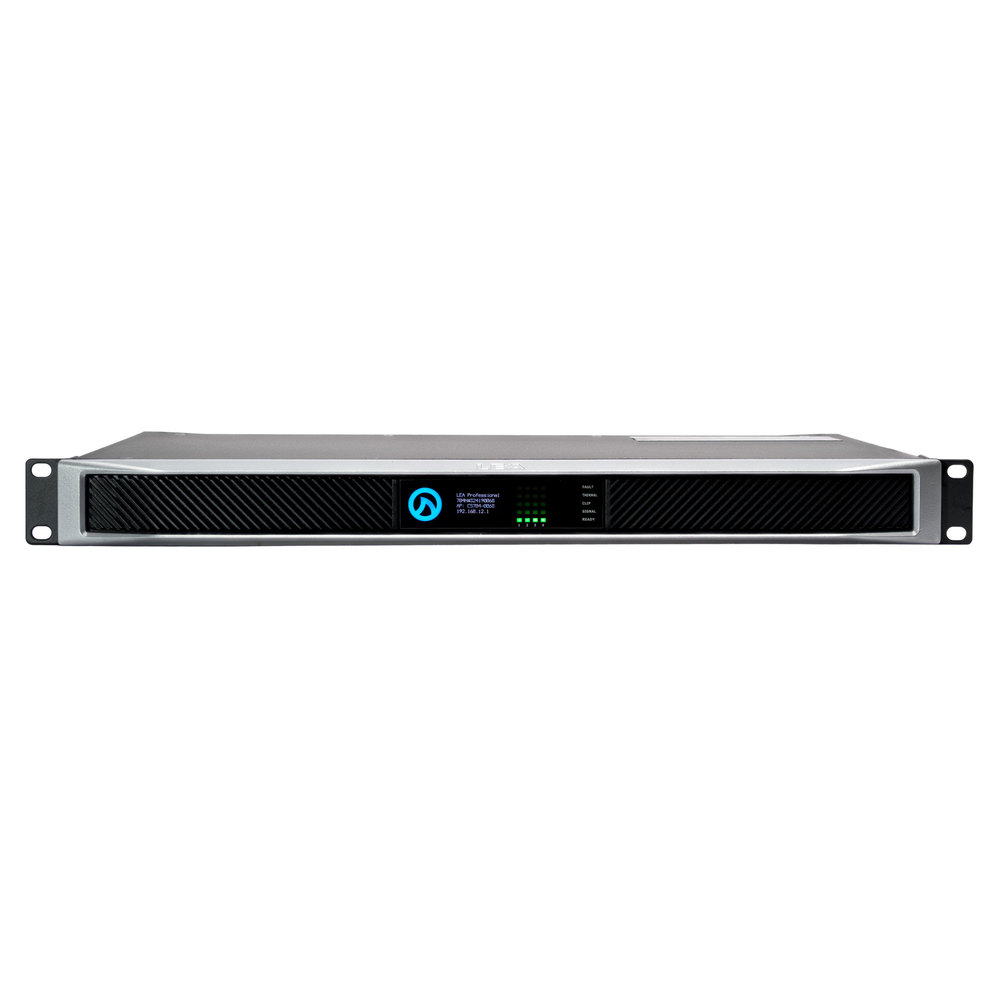

Eight-channel power amplifier, 8x160WRMS at 4Ω / 8Ω / 100V (8x80W at 2Ω). Supports DANTE & AES 67 protocol, has internal DSP, IoT technology, with integrated WiFi Hotspot, WiFi or FAST Ethernet connectivity: Class D. x 482mm x 2U, Weight: 6.17 Kg
-
Manufacturer
LEA
-
Category
AMPLIFIERS
-
Use
POWER AMPLIFIERS 100V
-
Measurement Unit
PIECE
-
Warranty Months
12
-
Depth (cm)
36.2
-
AC Line Voltage and Frequency Configurations Available
100VAC - 240VAC +/- 15% 50Hz or 60Hz
-
Height (cm)
4.4
-
Power Output W/100V
160
-
Weight (Kg)
6.15
-
Power Output
160
-
Rack Installation Possible
Yes
-
Order Quantity
1
-
Channels
8
-
Power Output W/4Ω
160
-
Signal to Noise Ratio (dB)
105
-
Total Harmonic Distortion (THD) (full rated power, 20Hz to 20kHz) <
0,1
-
Frequency Response (at 1W, 4/8Ω) (dB) ±
20Hz - 20kHz
-
Amplifier Type
Power Amplifier
-
Catalog
Professional
-
Crosstalk (below rated power) 20Hz to 1kHz > (db)
70dB (20Hz to 20kHz)
-
Load Impedance
100V/70V, Ohm
-
Power Output W/8Ω
160
-
Input Sensitivity
Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
-
Width (cm)
48.2
