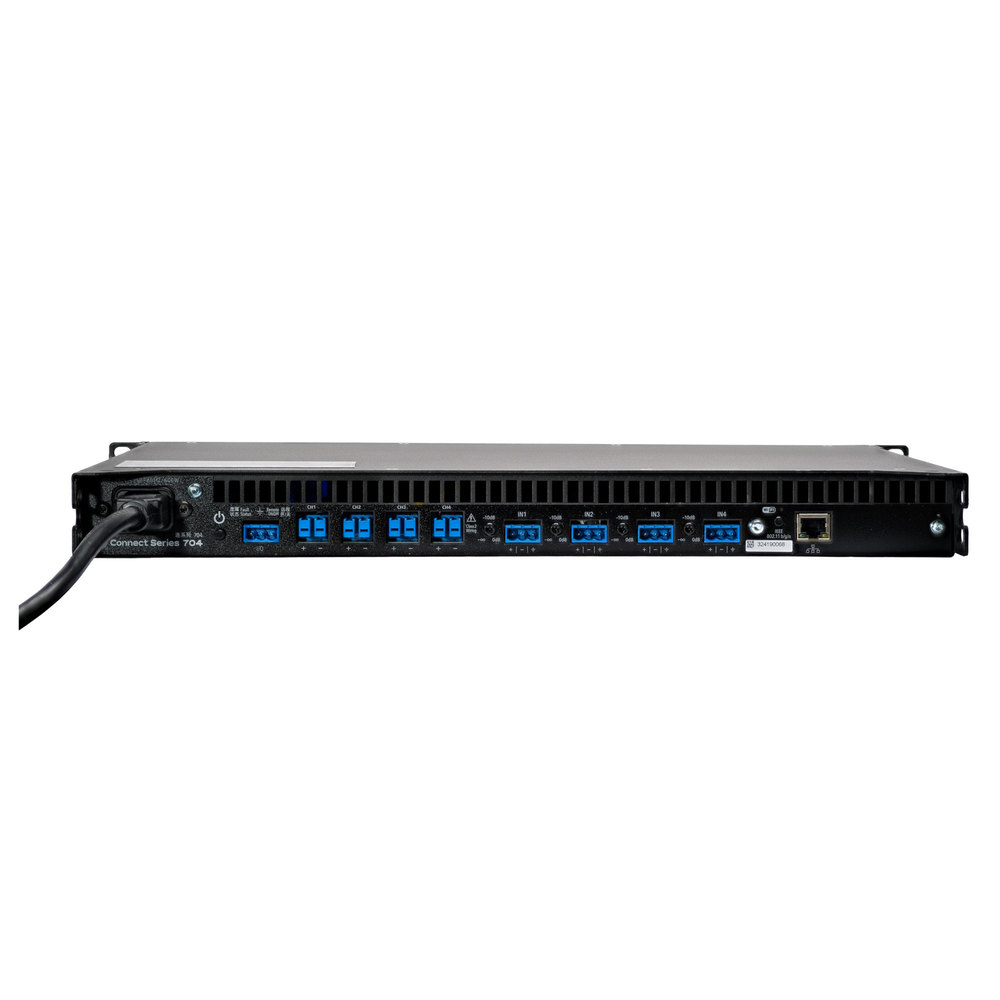

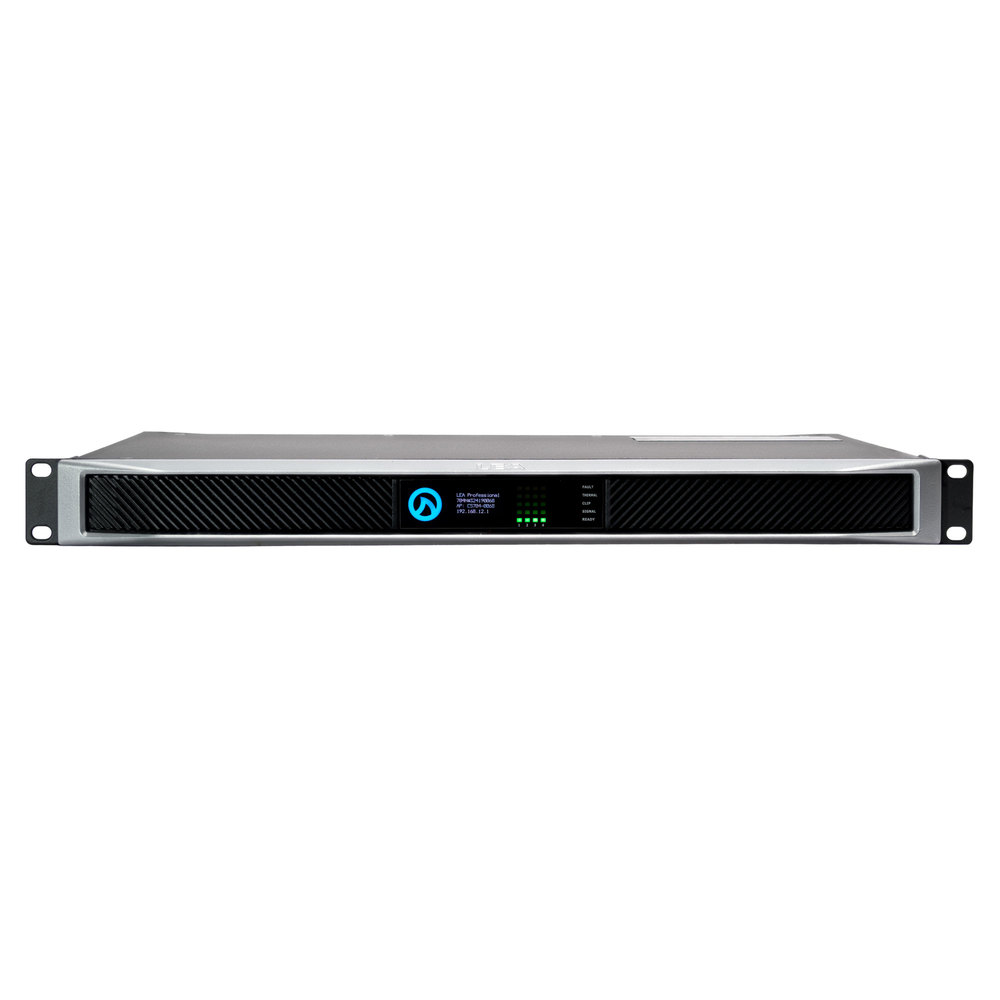

LEA POWER AMPLIFIER 8X80Wrms. SUPPORTS DANTE

Code: CONNECT 88D

OUT OF STOCK

Add to Compare list

Free Shipping for online orders over 69€

Four-channel power amplifier, 8x80WRMS at 4Ω / 8Ω / 100V (8x40W at 2Ω). Supports DANTE & AES 67 protocol, has internal DSP, IoT technology, with built-in WiFi Hotspot, WiFi or FAST Ethernet connectivity: 45mm. x 482mm x 2U, Weight: 6.15 Kg

Manufacturer

LEA
Category

AMPLIFIERS
Use

POWER AMPLIFIERS 100V
Measurement Unit

PIECE
Warranty Months

12
Depth (cm)

36.2
AC Line Voltage and Frequency Configurations Available

100VAC - 240VAC +/- 15% 50Hz or 60Hz
Height (cm)

4.4
Power Output W/100V

80
Weight (Kg)

6.15
Power Output

80
Rack Installation Possible

Yes
Order Quantity

1
Channels

8
Power Output W/4Ω

80
Signal to Noise Ratio (dB)

105
Total Harmonic Distortion (THD) (full rated power, 20Hz to 20kHz) <

0,1
Frequency Response (at 1W, 4/8Ω) (dB) ±

20Hz - 20kHz
Amplifier Type

Power Amplifier
Catalog

Professional
Crosstalk (below rated power) 20Hz to 1kHz > (db)

70dB (20Hz to 20kHz)
Load Impedance

100V/70V, Ohm
Power Output W/8Ω

80
Input Sensitivity

Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
Width (cm)

48.2
