MA LIGHTING MA3 NETWORK TO 2 PORT DMX CONVERTER

The grandMA3 2Port Node is our smallest solution for converting Ethernet to DMX data. Easy to install this small half width, 1RU housing Node just synchronously outputs 2 DMX universes from any grandMA3 session, wherever needed. A unique bracket accessory allows for alternative fixing methods if required.

Every grandMA3 xPort Node is designed for the ever-increasing demands in touring and fixed installation applications to build a reliable and stable backbone of synchronized data transportation. All Nodes are remotely configurable from any console/onPC within the session to provide easy access to DMX output or DMX input.

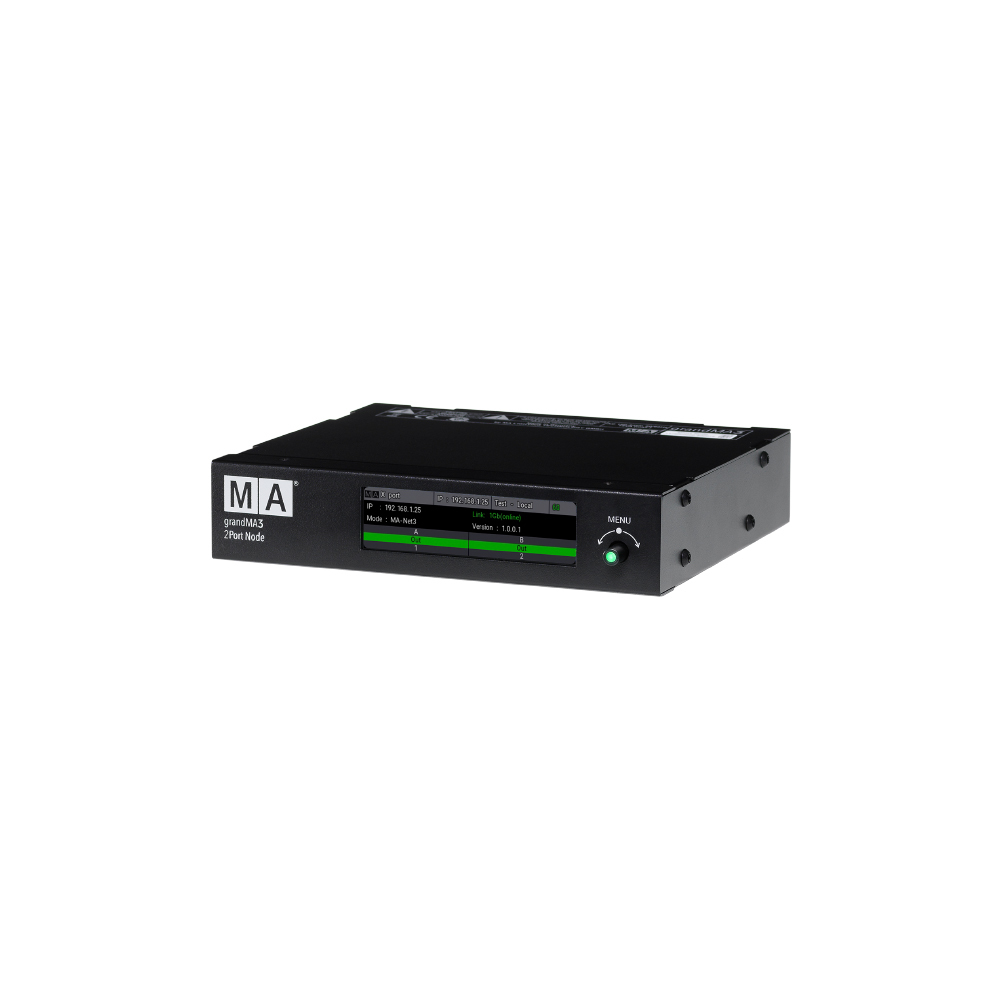

Every grandMA3 xPort Node is capable of handling MA-Net3, MA-Net2, sACN and Art-Net data and is fully RDM compliant. A 3.9" color display on the front face allows for simple configuration and provides a quick overview of the status of each Node.

All grandMA3 xPort Nodes are equipped with a powerful processor and a 1000Mbit/s Ethernet connection to ensure the most reliable and stable Ethernet to DMX and vice versa conversion.

Supplied with 1x powerCON TRUE1 connector (NAC3FX-W)

Technical Specifications
Parameters none
Parameters Mode2 none
Operating voltage/ Supply voltage 100-240V, 50/60Hz
Power max. 15VA
Dimensions 207 x 184 x 43 mm / 8.1 x 7.2 x 1.7 inches (width x depth x height)
Net weight 1.5 kg / 3.3 lbs

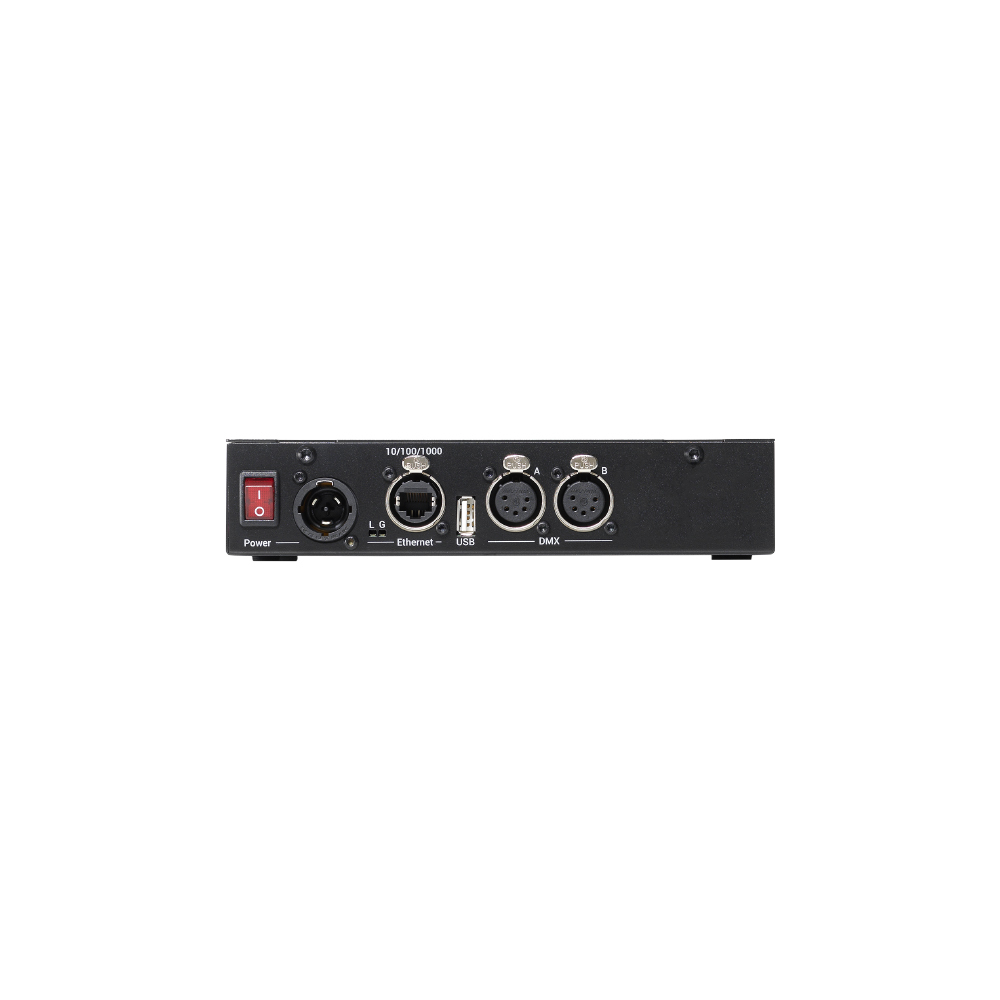

Connectors
1 x powerCON TRUE1
1 x etherCON/RJ45
2 x DMX512-A Out (5pin XLR female)
1 x USB 2.0 (type A)
