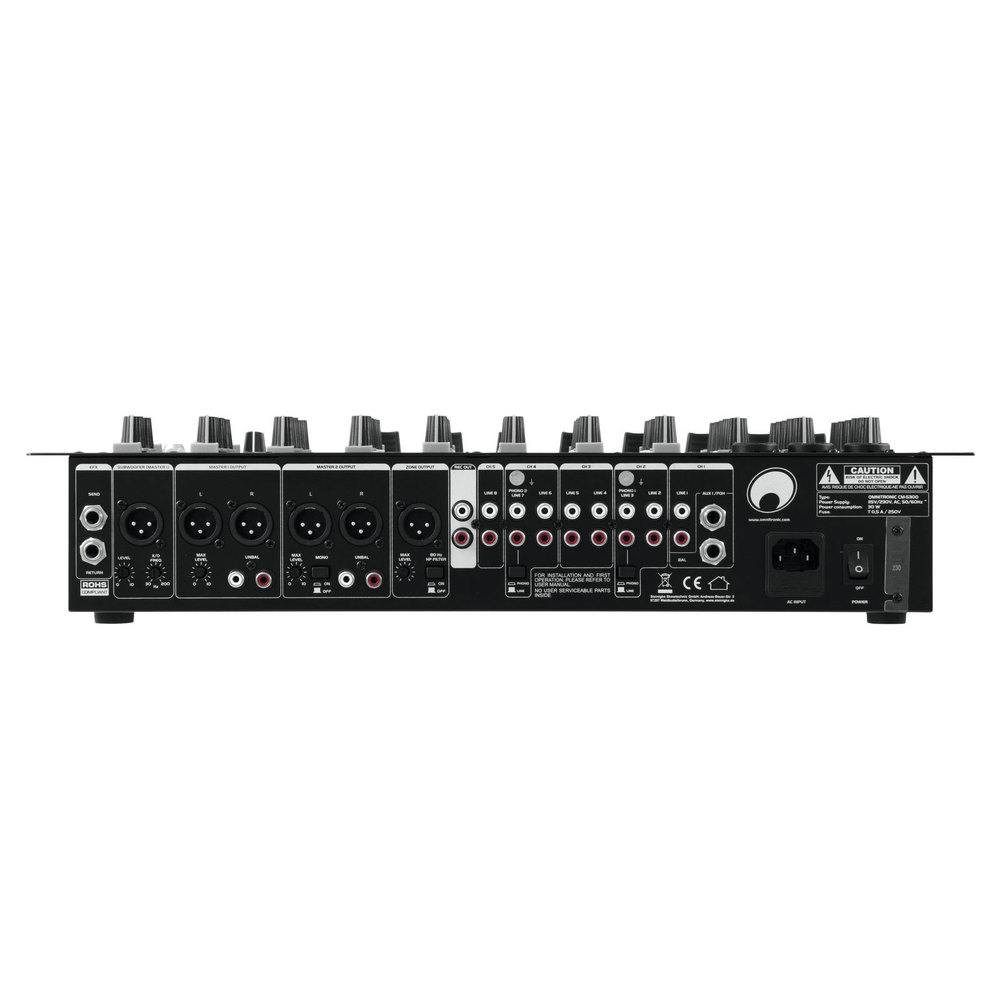

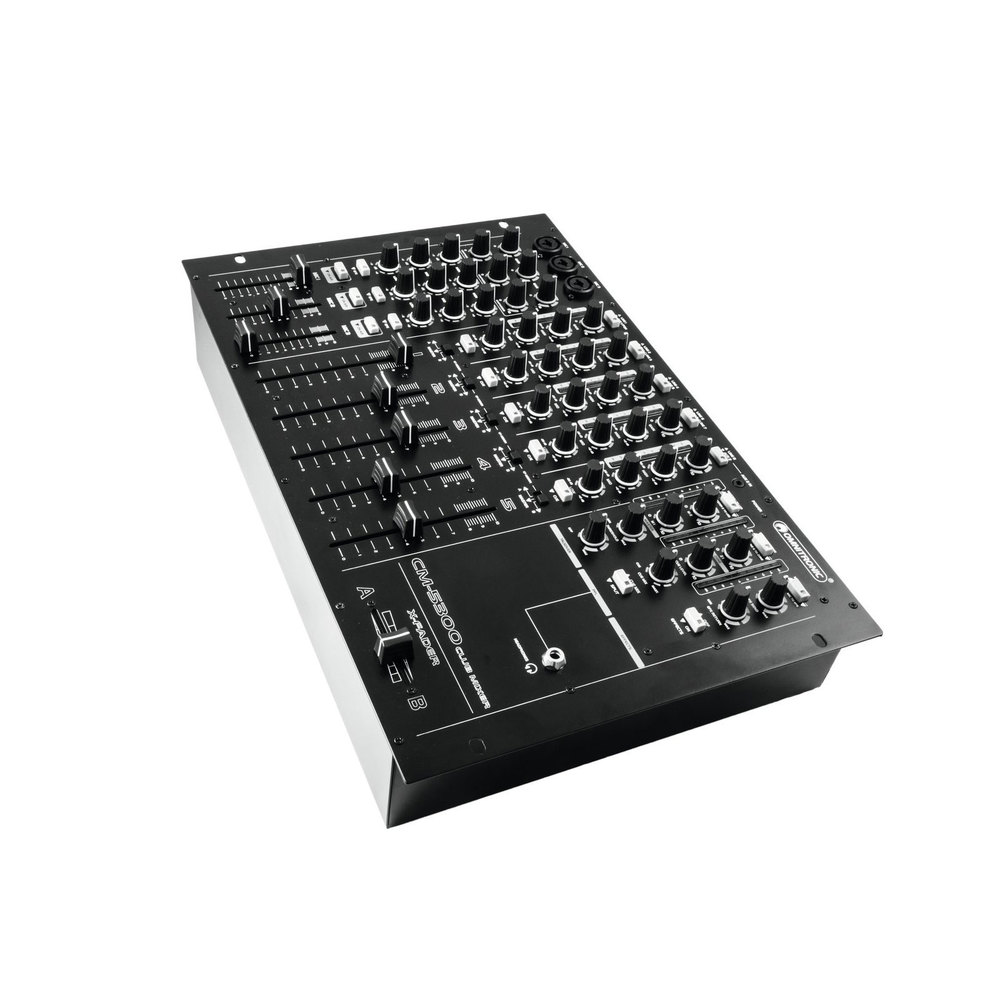

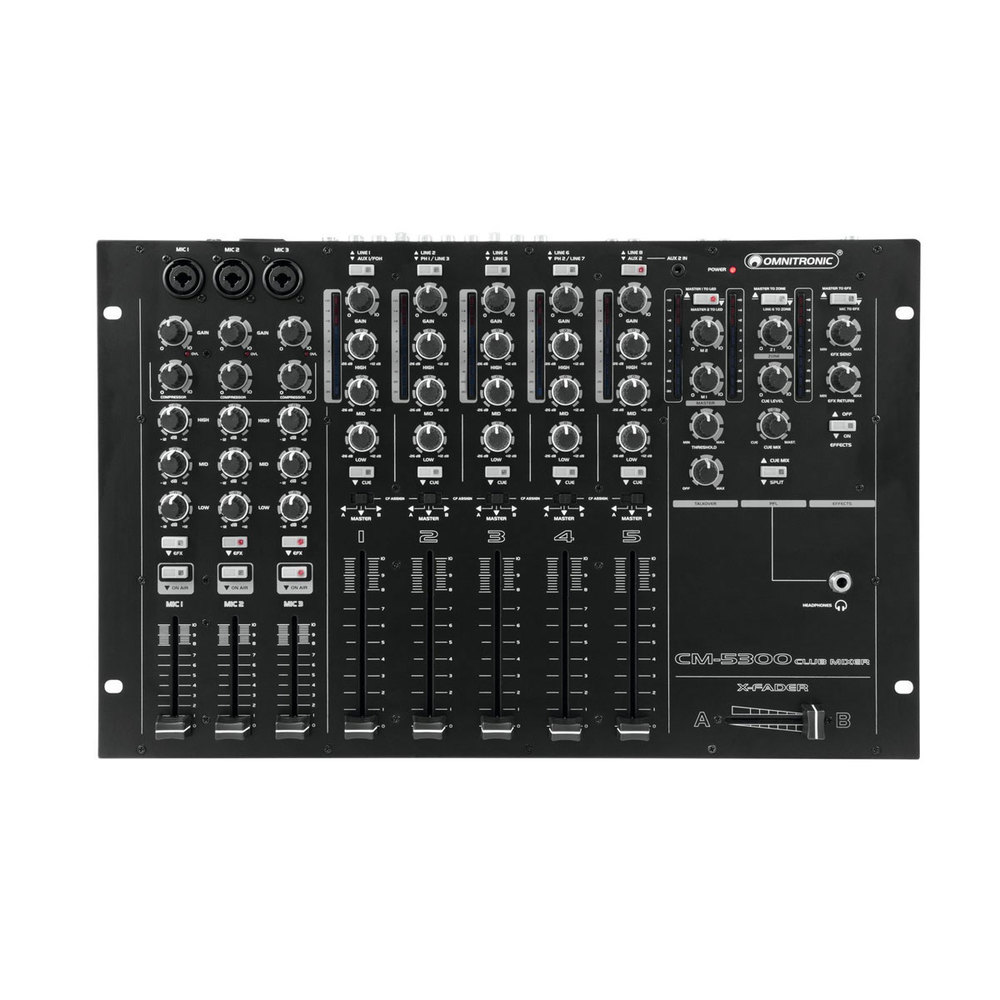

OMNITRONIC 19'' 5-CHANNEL CLUB MIXER

The CM-5300 is a high-grade stereo mixer with an extensive feature set for clubs and numerous mobile PA applications. The 3 microphone channels have a one-knob compressor, adjustable talkover function and a 3-band EQ. the 5 stereo channels come with gain controls, individual VU meters, 3-band kill EQs, 100mm dual-rail faders and assignable crossfader. Channel 1 can be used for FOH signals, channel 6 features a 3.5mm AUX input. The stereo and mono output sections have their own level meters, trimmers for adjusting the maximum output level and electronically balanced XLR connectors. In addition, a subwoofer output with built-in active crossover is provided. The mixer can be used as a table-top unit or installed in a rack.

- High-grade stereo mixer for clubs and numerous mobile PA applications
- 5 stereo input channels with gain control, 3-band kill EQ (+12/ -26 dB) and 10-digit LED level meter
- Front panel aux input
- Rear stereo input FOH for stage mixers
- Smooth dual-rail channel input faders (60 mm/100 mm)
- 3 microphone input channels with front combo connector
- Gain control, peak LED, 3-band EQ and on air switch per microphone channel
- One-knob compressor per microphone channel
- 2-parameter adjustable auto talkover for automatic music level reduction when microphone is used
- Fully assignable smooth dual-rail crossfader (45 mm)
- Master section with two separately controllable stereo outputs, output 2 switchable to mono
- 10-digit stereo LED level meter, switchable between both master outputs
- Balanced XLR and RCA outputs
- Additional mono zone output (with switchable 80Hz HPF) which can be routed to the master bus or channel 5
- 10-digit LED level meter for the zone output
- Mono subwoofer output with integrated active crossover (frequency/level adjustable)
- All outputs with rear-side maximum level setting controls
- Adjustable effects send/return path, assignable to mic or master bus
- PFL section with PFL/master mix control and cue
