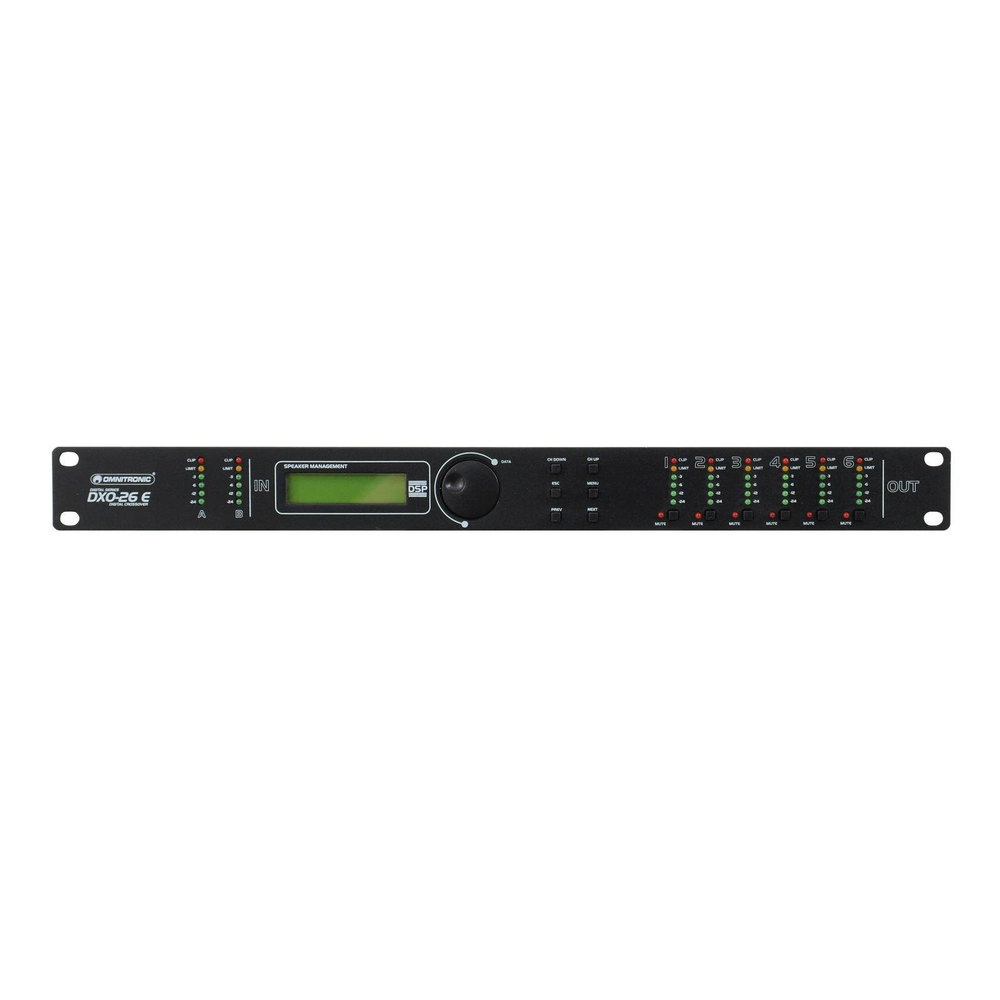

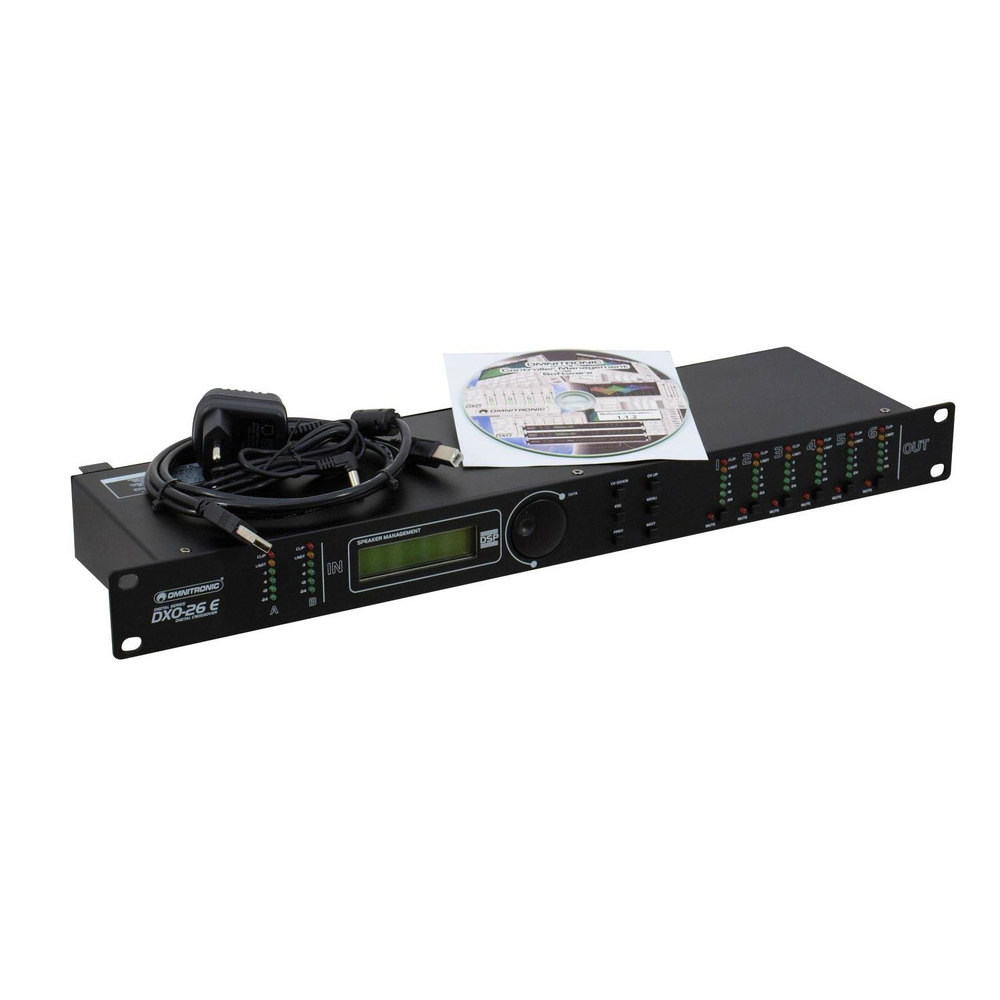

OMNITRONIC DIGITAL CONTROLLER 2IN/6OUT

Digital stereo active crossover with 2 inputs and 6 outputs, incl. software

- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 6 analog outputs (XLR)
- Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
- Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
- Up to 30 user presets storable in the device via software
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
- Mute switch with LED indicator per output
- 7-band parametric EQ per output
- Up to 7 ms signal delay adjustable for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
Switchable phase
- Lock function for protecting the program settings
- Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
- Digital signal processor
- The device can be connected via USB to the PC in connection with DXO Software. The firmware can be updated via the PC connection
- (19") 48.3 cm rack installation 1 U
