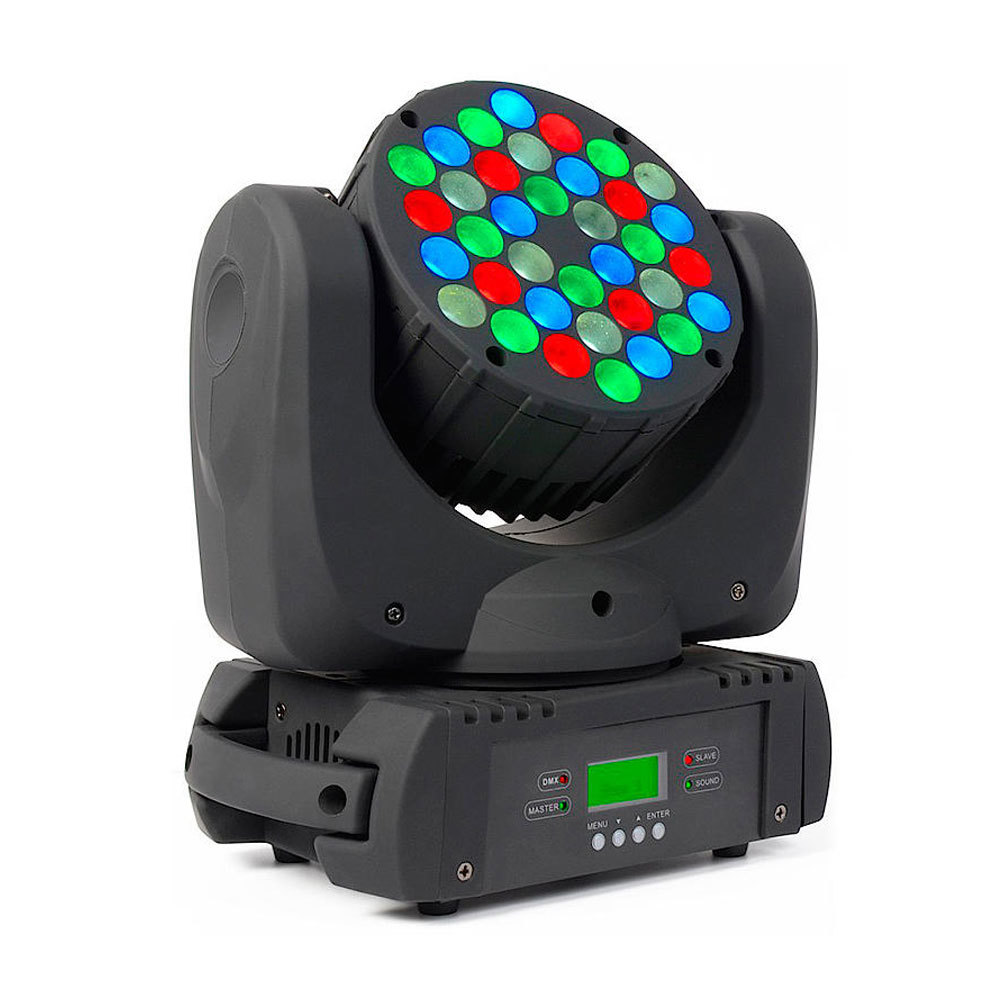

36*3W INNO Color Beam LED CREE RGBW
User modes: Automatic, Music, Master / Slave, DMX-512
DMX-512: 9,12 or 16 channels selectable
Pan movement: 540 degree
Tilt movement: 270 degree
Lamp: CREE 3W LED 36PCS RGBW
Lamp life: 50000hrs
Power consumption: 150W
Power supply: AC100-250V, 60/50Hz
Working Voltage: DC 24V
Beam angle: 8 degree Gaggione lens
Output:2700 LX with distance of 1 meters(Full color)
Best distance to illuminate: 10-20 meters
Low-noisy fan for silent environment
PFC power factor compensation
Rotation: Pan / Tilt rotates in silent mode
Control signal: DMX512, master/slave, sound control, and auto
Up to IP20 degree of protection
Automatic Pan and Tilt re-positioning system if accidentally knocked out
of place and with correct positioning function
Display: using beautiful blue and white LCD display
Shell: new cabinet streamlined PC engineering plastic shell, once
molding
Mixing color system: R,G,B,W mixing colors infinitely
High speed electronic adjusting strobe : 1-13 times per second
3 pin XLR-connection sockets
Digital strobe, speed adjustable (0~~100%)
Digital dimmer (0~~100%)
Built-in movement macros master/slave or DMX
LED display menu with invert
Fan cooled
ID settable by DMX controller
Customized color selectable with the device, activated by the DMX controller
Dimension: 267x167x304mm
Carton size: 325x250x410mm
Net weight: 5.0kgs
Gross weight: 6.0kgs
-
Manufacturer
PLS
-
Category
MOVING HEADS - SCANNERS
-
Use
LED WASH MOVING HEADS
-
Measurement Unit
PIECE
-
Warranty Months
12
-
Depth (cm)
16.0
-
Height (cm)
26.0
-
Weight (Kg)
4.6
-
Lamp Category
SINGLE COLOR LED
-
DMX Channels (Multi Mode)
9/12/16
-
Frost
No
-
Operating Mode
AUTO, DMX, MASTER/SLAVE, MUSIC
-
Optional Lens
No
-
Power supply (V)
100V/240V
-
IP Rating
20
-
Color Mixtype
RGBW
-
Power of the Light (Watt)
108
-
Gobo Wheel
No
-
Order Quantity
1
-
Effect Wheel
No
-
Zoom
No
-
Lighting Type
WASH
-
Focus
No
-
IRIS
No
-
Catalog
Lights
-
Shutters
No
-
Lamps Ammount
36
-
Lamp Type
LED
-
Width (cm)
30.0
-
Color
Black/Μαύρο
