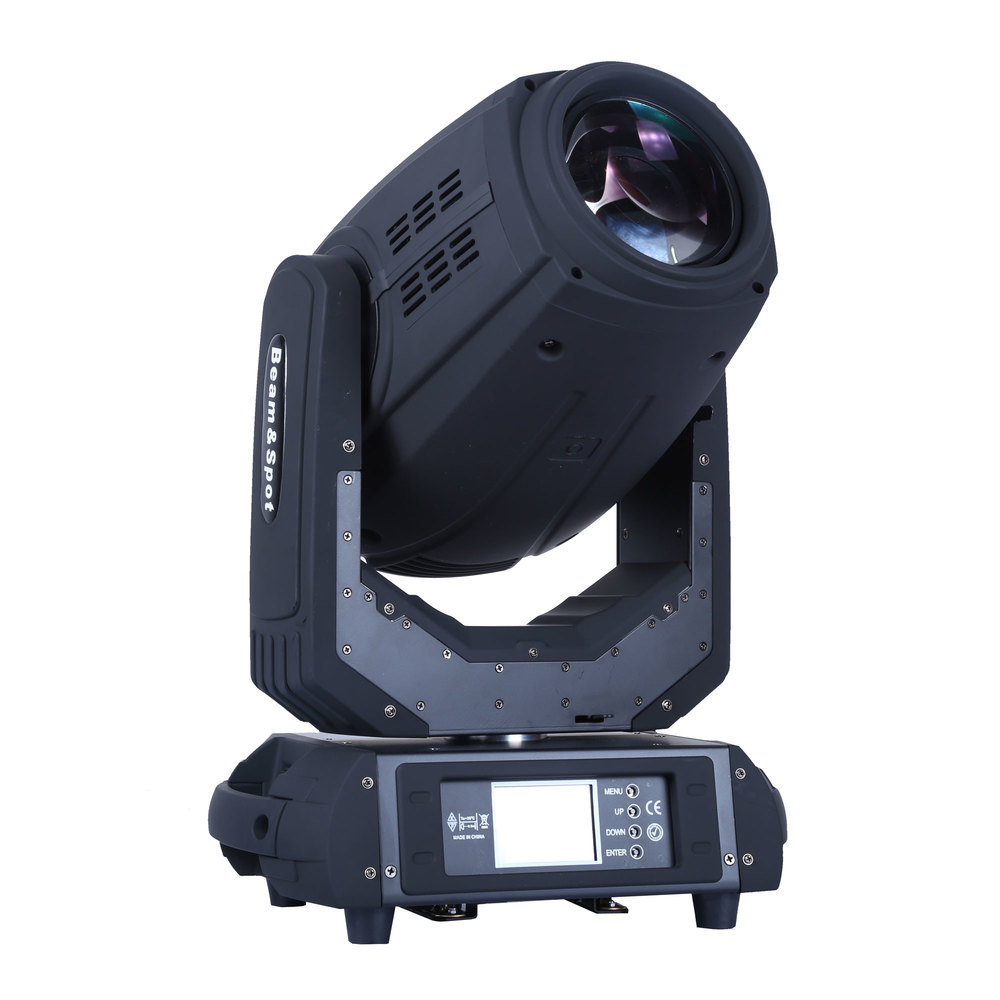

PLS MOVING HEAD BLACK BEAM-SPOT-WASH 10R/280W

Beam & Spot 280W 3 IN 1

TECHNICAL PARAMETER
Control channel: 16/24 DMX 512 channels optional
Voltage: AC100~240V, 50~60 Hz
Ballast: E-ballast
Lamp: OSRAM SIRIUS HRI 280W RO
Power: 470W
Life span: 2000 hours
Display software functions:
Clicking directly on the display can control all functions
Can rotate in 180 degrees
Can show lamp life span
Adopting color LCD touch screen (2.8 inches) in display board
Can input customized brand name and item number directly
Random replacement between English and Chinese
Can be directly monitor and set all functions from the display
Gobo wheel:
Gobo wheel 1: rotatable with 9 glass gobos plus white plus auto rotation, changeable gobos (diameter: 15.4 mm, effective inner diameter: 13 mm)
Gobo wheel 2: 13 metal gobos plus white
Color wheel: one color wheel with 13 colors plus white
Effect wheels: two rotating prisms: Bilateral 8-facet circular prism and Bilateral 6-facet linear prism, with frost effect
Lens group of optics system: electric focus, with beam angle 0 ~ 20 °; adopting photoelectric re-position system, can automatically retrieve reset if false action happens accidentally
Wash effect: adjustable wash effect angle
Beam: multi-class beam adjustment
Focus: linear adjustment
Dimmer: 0-100% linear adjustment, supporting mechanical strobe, adjustable speed strobe effect and strobe macro functions
Projecting range: Pan 540°, Tilt 239° automatically accurate positioning
Scanning speed: Pan 540°/ 3 sec, Tilt 239° / 2 sec
Beam angle: linear zoom 4-25°
Strobe: double strobe function, 0.5-14 times / sec adjustable)
Motor quantity: 15 units mute sound motors, containing 2 units three-phase motors, 16bit drive
Control mode: Standard DMX512
Appearance: heat-proof plastic, module pressing alloy materials
IP Rate: IP20
Light size: 37*25.6*60 cm
Carton case size: 40*29*63 cm
Net weight: 16 kg
Gross weight: 20 kg
