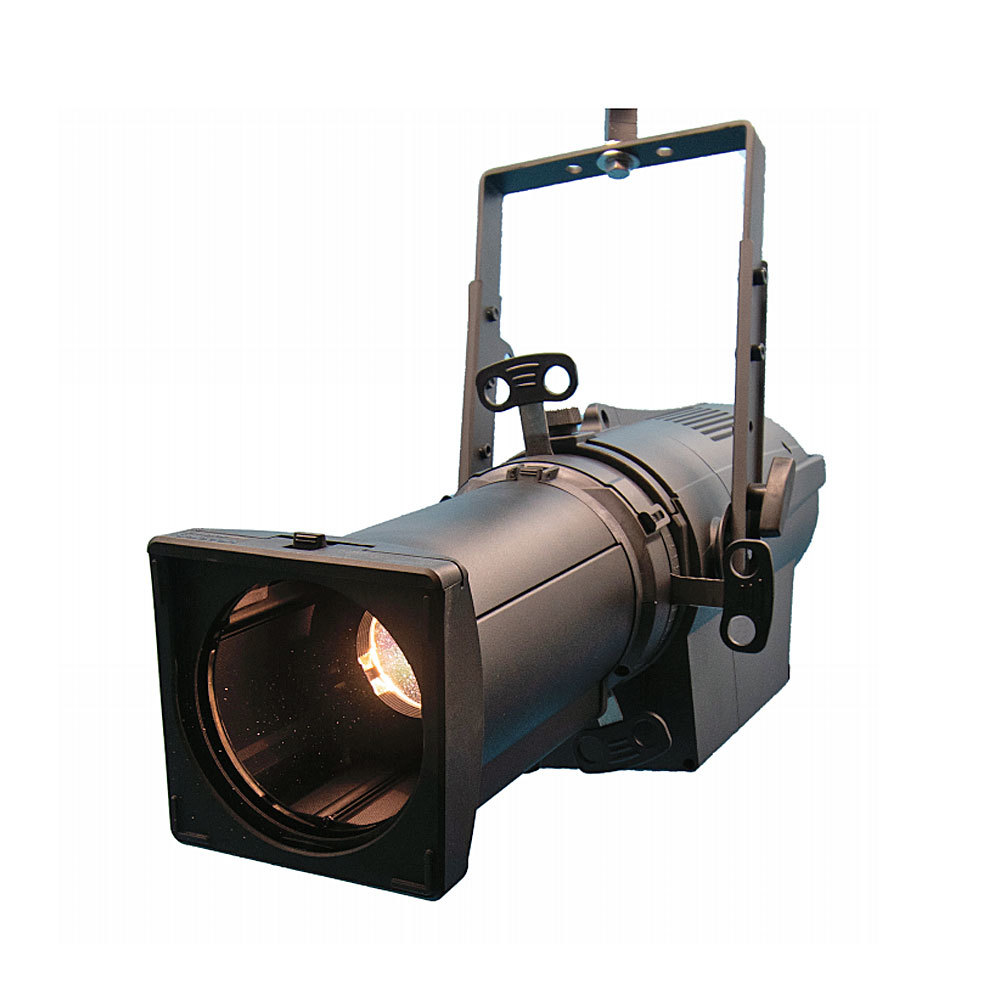

STRAND LED LAMP HOUSING, 273W, 4000°K - 6500°

Strand Leko LED Profi le- the modern successor to the iconic Strand Leko that inspired Generations of designers, this profile fixture is available in full color which uses a Red, Green, Blue, Amber, Lime & Cyan color mixing system for the mixable color spectrum. To compliment the Full Color version two white output versions, a warm tunable white (2700K to 4500K), and cold tunable white (4000K to 7000K) varieties, both of which
off era consistent CRI exceeding >94 CRI across all color temperatures. The entire Leko family offer, far more than just in innovated color control, each of the fixtures utilizes new fan control technically and functions ensures these new high powered LED fixtures are suitable for use in the quietest of applications. To simplify installations, the Leko LED uses the SPX Smart Gate found on legacy SPX and PL4 fixtures and is compatible with existing SPX lenses, optional universal lens tube are also available for use with legacy Strand LEKO lens tube and other common lens Systems.

FEATURES AND BENEFITS
- High output midsized LED theatrical luminaires - modern fixtures with
quality you can trust
- High CRI RGBALC Color System with SmartColor Control - wide range of
vivid color options that can be programmed using CYM
- Tunable white with >94 CRI - adjust color temperature without
compromising output or quality of light
- Independent color mixing and temperature controls - match color palette to
color temperature without manual adjustment for simpler programming
- Quiet operation with variable fan control - perfect for use in quiet
environments
- Adjustable frequency to exceed camera frame rates - camera-friendly
fixtures for IMAG, event recordings, or TV and fi lm applications

TUNABLE COLOR WHITE S O U R C E
Type: 4000K+6500K
Wattage: 91pcs x 3W
O P T I C A L P E R F O R M A N C E
Dimming: 16-bit dimming, Dim snap on/off DMX control
Dimming curves: Square Law, Linea, S-Curve
CCT: 4000 - 6500k
Strobe: Standard, Lightning & Random
Output lumens: 8500
CRI: 97
TV flicker free: Yes Adjustable 12 Hz-25 KHz
B E A M
Shutter: 4 blade shutter 360° continuous rotation
Gobo: B size gate / metal and glass
C O L O R C O N T R O L
CTO / CTB: Variable control 4,000 - 6,500K
C O N T R O L S
Control data: DMX RDM
Data input: 5-pin DMX in/thru
DMX modes: 16-bit - 7 channels (default) | 8 Bit - 5 channels | 2 Ch - 2 channels
Fan control: Fan On (Continuous) or Fan Auto
Fan level preset: Standard, Studio, Whisper
User variable fan control: User-definable variable fan speed level via DMX Whisper - Standard
P O W E R
Range: 100 - 240VAC
Connector type: Input/Thru
Max wattage 240V or 120V | <300W
E N V I R O N M E N T
Cooling system: Forced air cooling
Operating temp: 0° - 45°
Construction: Cast aluminum
Standard finish: Raven black
IP rating: IP20
P H Y S I C A L S
Yoke: Double clutch yoke with built-in short yoke adjustment
DIMENSIONS (H x W x D mm): Fixture only: 261 x 484 x 276 | Packed: 300 x 355 x623
W E I G H T: Fixture only: 9,3Kg
