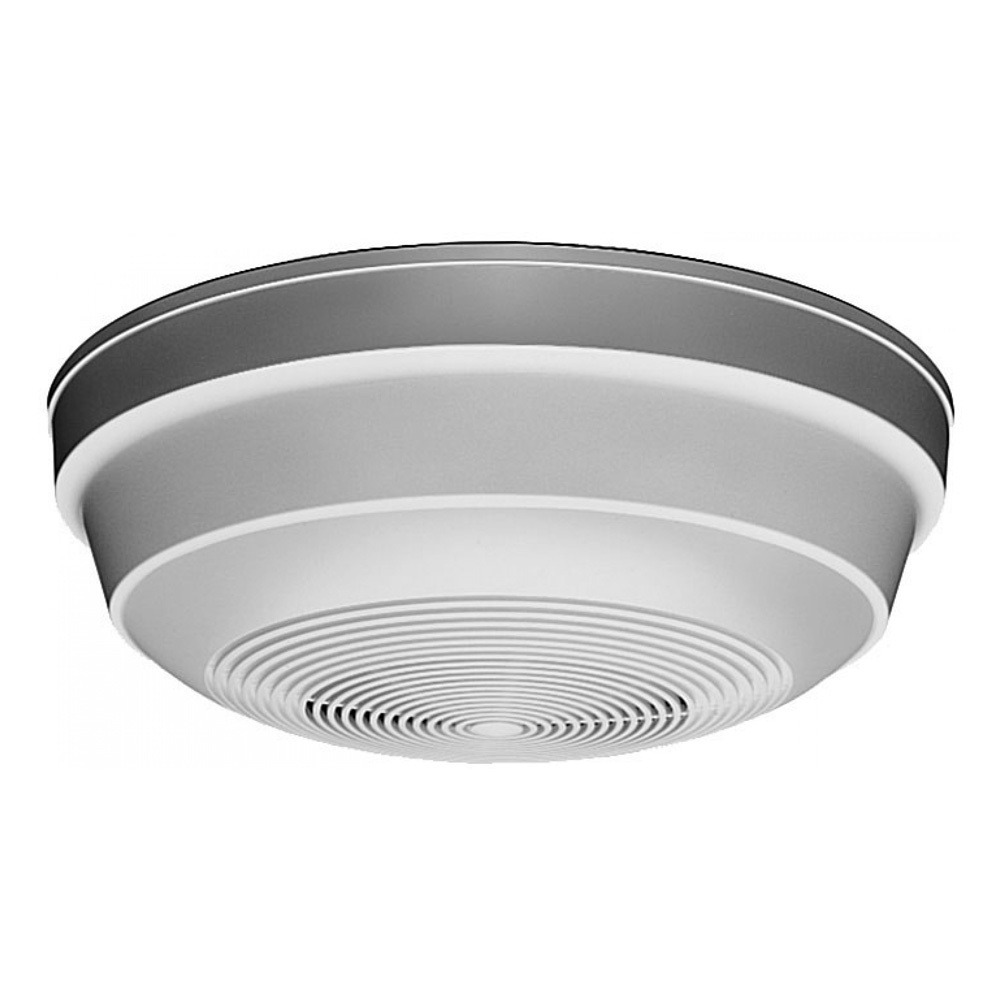

TOA CEILING SPEAKER 6W 5'' 100V 90dB

The TOA PC-2668 speaker can be mounted (exposed installation) to the ceiling where flush mounting is impossible. It can be easily installed thanks to its spring catch method. Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals. The supplied bracket can be mounted to a flush-mount pull box.

Spec Rated Input 6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance 100 V Line: 1.7 kohms (6 W), 3.3 kohms (3 W),
(6.7 kohms (1.5 W), 13 kohms (0.8 W): Internal wiring must be changed)
70 V line: 1.7 kohms (3 W), 3.3 kohms (1.5 W),
(6.7 kohms (0.8 W), 13 kohms (0.4 W): Internal wiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m, 330 - 3,300 Hz Pink noise)
Frequency Response 100 - 16,000 Hz
Speaker Component 12 cm dynamic cone-type speaker
Finish Baffle: ABS resin, off-white (RAL 9010 or equivalent color)
Dimensions 260 x 92 (D) (Exposed section) mm
