TOA TOA

TOA CEILING SPEAKER 6W 5'' 100V 90dB

Code: PC-648R
Internet Price
19,07
Catalog Price: 21,18€ / PIECE
IN STOCK
Free Shipping for online orders over 69€

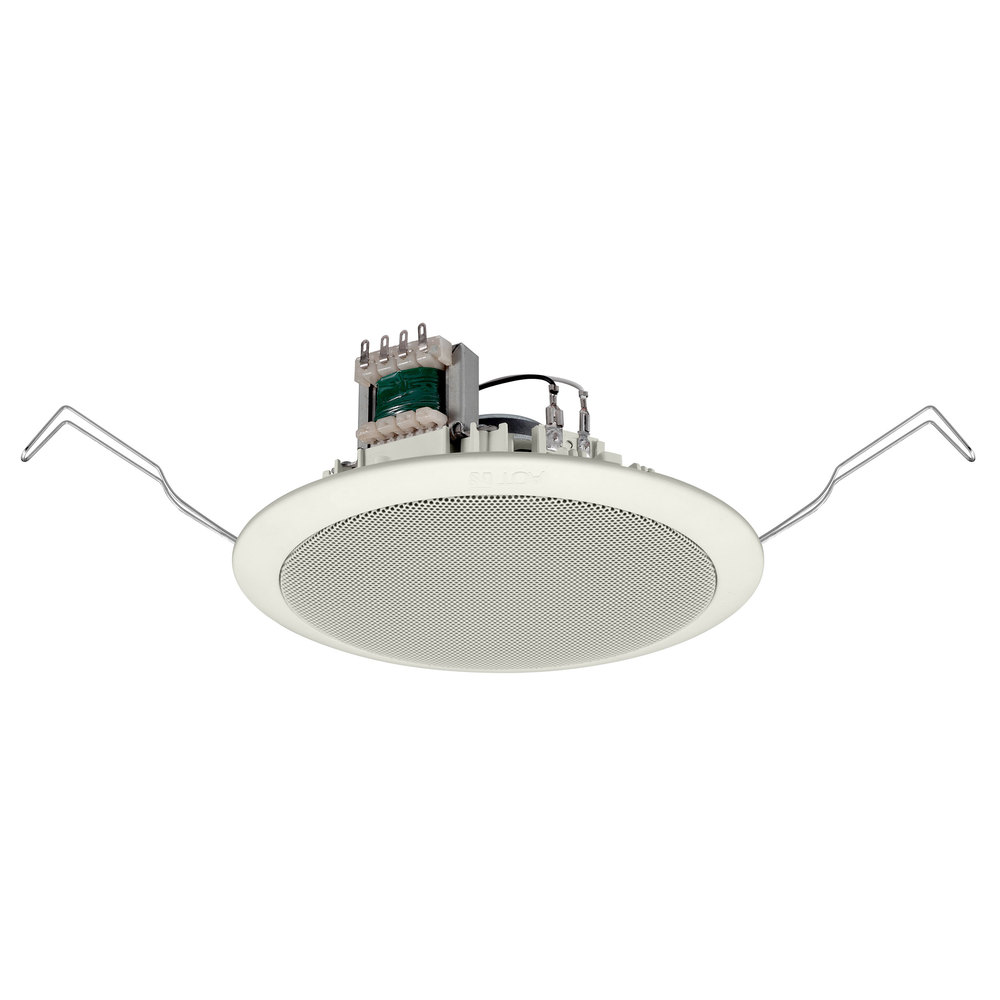

Integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.

Rated Input: 6 W (100 V line), 3 W (70 V line)
Rated Impedance: 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity: 90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Frequency Response: 100 - 18,000 Hz (peak -20 dB)
Speaker Component: 12 cm (5") cone-type
Dimensions for Fixing Hole Mounting hole: φ145±5 mm (φ5.71"±0.2")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method Spring clamp
Finish Baffle: Polypropylene resin, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color),
paint
Dimensions φ168 x 77 (D) mm (φ6.61" x 3.03")
Weight 470 g (1.04 lb)
  • Manufacturer
    TOA
  • Category
    SPEAKERS
  • Use
    CEILING SPEAKERS
  • Measurement Unit
    PIECE
  • Warranty Months
    12
  • Depth (cm)
    7.7
  • Weight (Kg)
    0.47
  • Order Quantity
    1
  • Max SPL Output (dB)
    90
  • Cutout Diameter (cm)
    14.5
  • Impedance
    100V/70V
  • Power Rating Watt/V
    6
  • Speaker Type
    Passive/Παθητικό
  • Low Speaker Size
    5"
  • Catalog
    Professional
  • Speaker System
    Full Range
  • Freq From (Hz)
    100
  • Freq Up to (Hz)
    18000
  • Color
    White/Λευκό
