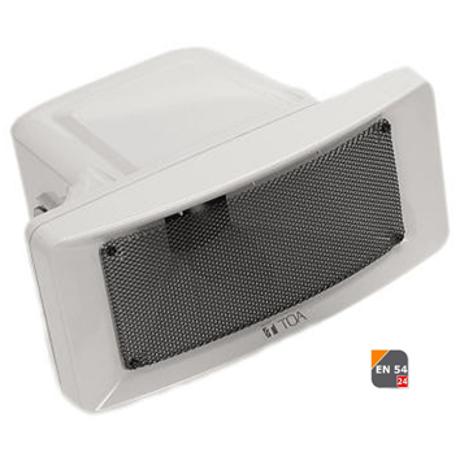

TOA HORN SPEAKER 70V/100V 15W/15W 5'' 97dB IP-65

TOA's CS-154 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-154 employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90°operation.

Spec Rated Input 15 W
Rated Impedance 100 V line: 670 ohms (15 W), 1 kohms (10 W), 2 kohms (5 W)
70 V line: 330 ohms (15 W), 670 ohms (7.5 W), 1 kohms (5 W), 2 kohms (2.5 W)
Sound Pressure Level 97 dB (1 W, 1 m)
Frequency Response 150 - 15,000 Hz
Speaker Component 12 cm cone-type
Horizontal Directivity Constant directivity horn 90° (+/-45° horizontal from front axis)
Over 93 dB (1 W, 1 m), 3 kHz at +/-45°
Water Protection IP65
Finish Horn, cover: ABS resin, off-white, paint
Bracket: Stainless steel
Net: Aluminum, gray, paint
Screw: Stainless steel
Dimensions 366 (W) x 230 (H) x 272 (D) mm
