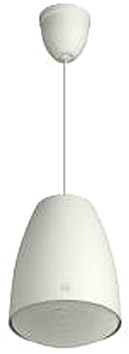

TOA PENDANT SPEAKER 30W 5'' 100V 91dB

The PE-304 is a HIPS resin bass-reflex enclosure for ceiling suspension installation.
The design is inspired by lighting fixtures, allowing it to harmoniously blend in with lighting equipment. Ideal for applications like BGM and announcements at high-ceiling venues such as airports, factories and
shopping malls. The speakers are repaintable. Including a suspension cable, extendable up to 5 meters. PE-304 is driven on a high and low impedance (100V or 70V or 8 Ohm) line. Input impedance is adjustable.

Spec Enclosure Bass-reflex type

Rated Input 30W (100V, 70V line, 8Ω)
Rated Impedance 100V line: 330Ω (30W), 500Ω (20W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)
70V line: 170Ω (30W), 250Ω (20W), 330Ω (15W), 500Ω (10W), 1 kΩ (5W)
8Ω (30W)
Sensitivity (1W, 1m) 91dB (500 - 5,000Hz, pink noise)
Frequency Response 70 - 20,000Hz (peak -20dB)
Speaker Component 5" (12cm) cone-type + balanced dome tweeter

Cable Speaker Cord: 2-core cabtyre cord 5m
Applicable Cable: 600V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: 0.8 , 1.6mm (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25mm2 (equivalent to AWG 18 - 16)
Connetion Push-in connector (bridging terminal-2 branch type)
Finish Enclosure: HIPS resin, off-white (RAL 9010 or equivalent colour)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent colour), paint
Dimensions 186 251(H) mm (unit only)
Weight 2.1kg(unit only)
