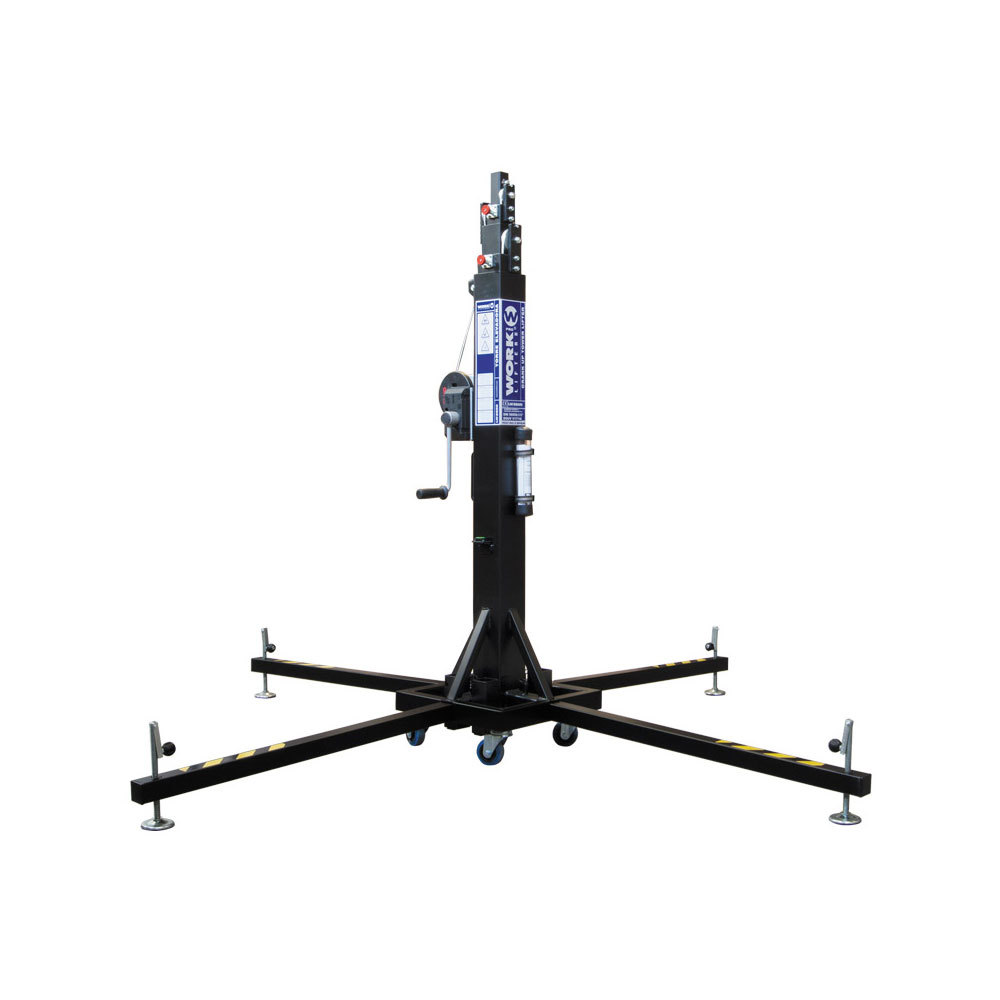

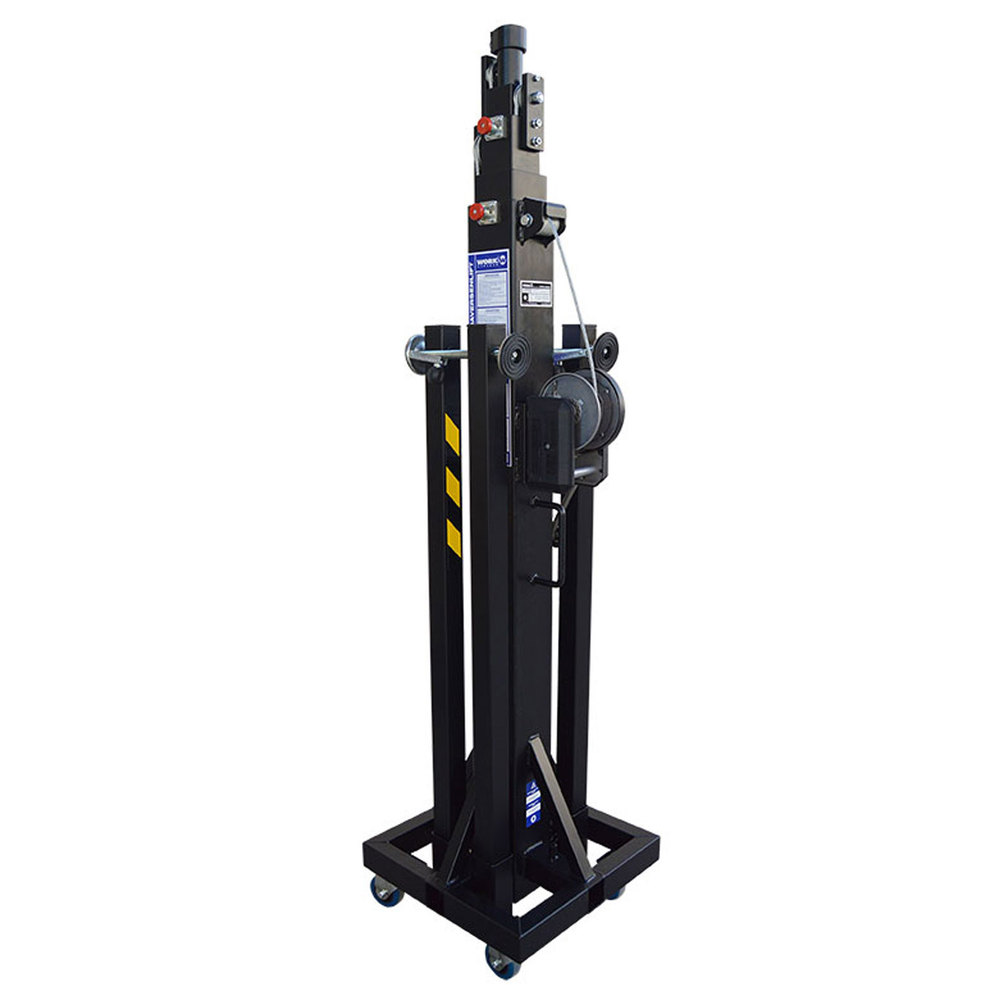

Telescopic lifting tower.
WORK PRO LIFTERS has redesigned the well-known LW series in order to comply with the DIN 56950 standard.

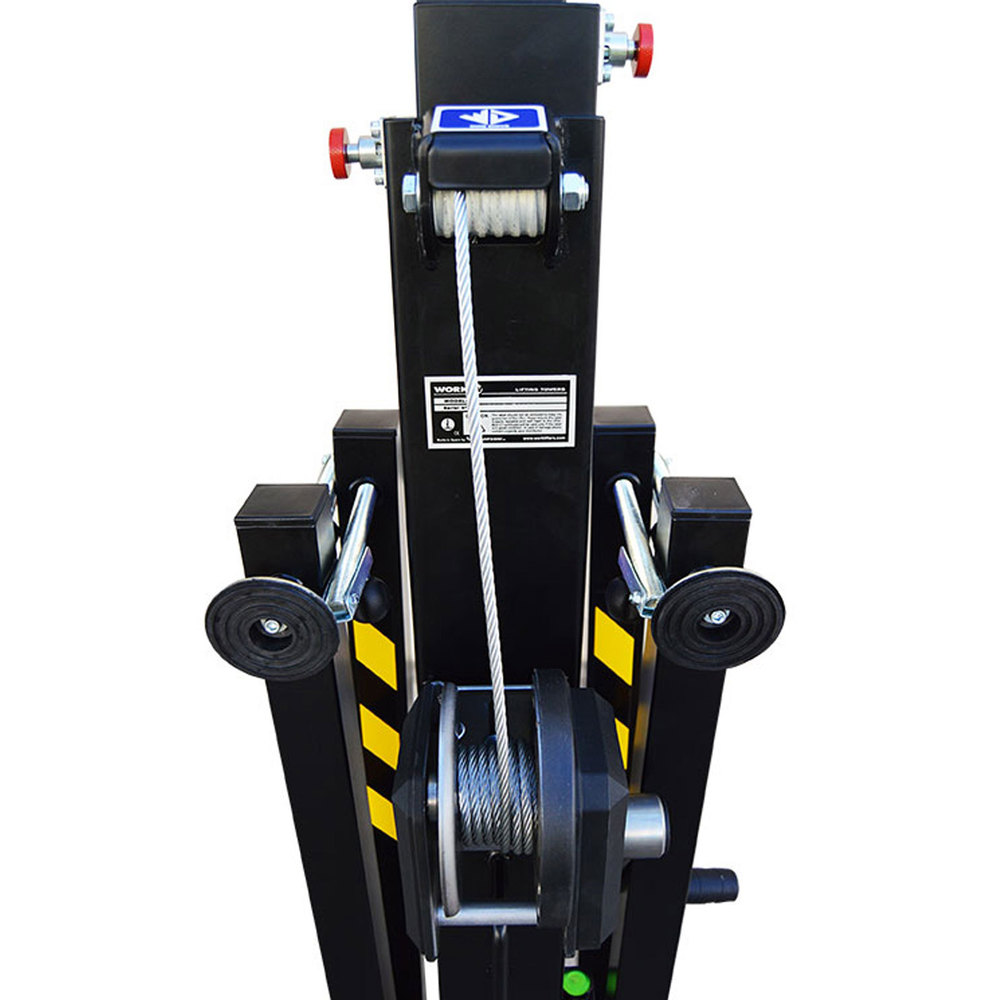

The LW-D /DY Series incorporates the innovative Wire Drive system, which has been developed in order to prevent undesired and dangerous cable crosses in the drum of the winch, making easier the roll up/unroll process and avoiding crashing or fraying that could reduce the useful life of the cable or (in the worst case) its breakage. Wire Drive consists of a multidirectional grooved pulley that reduces the wire fleet angle between the winch drum and its entry to the first mast, in order to be compliant with DIN 56950 standard.



Features
Wire Drive system to guide the cable.
Dynsys system for maximum load control.
Complies with DIN 56950 standard.

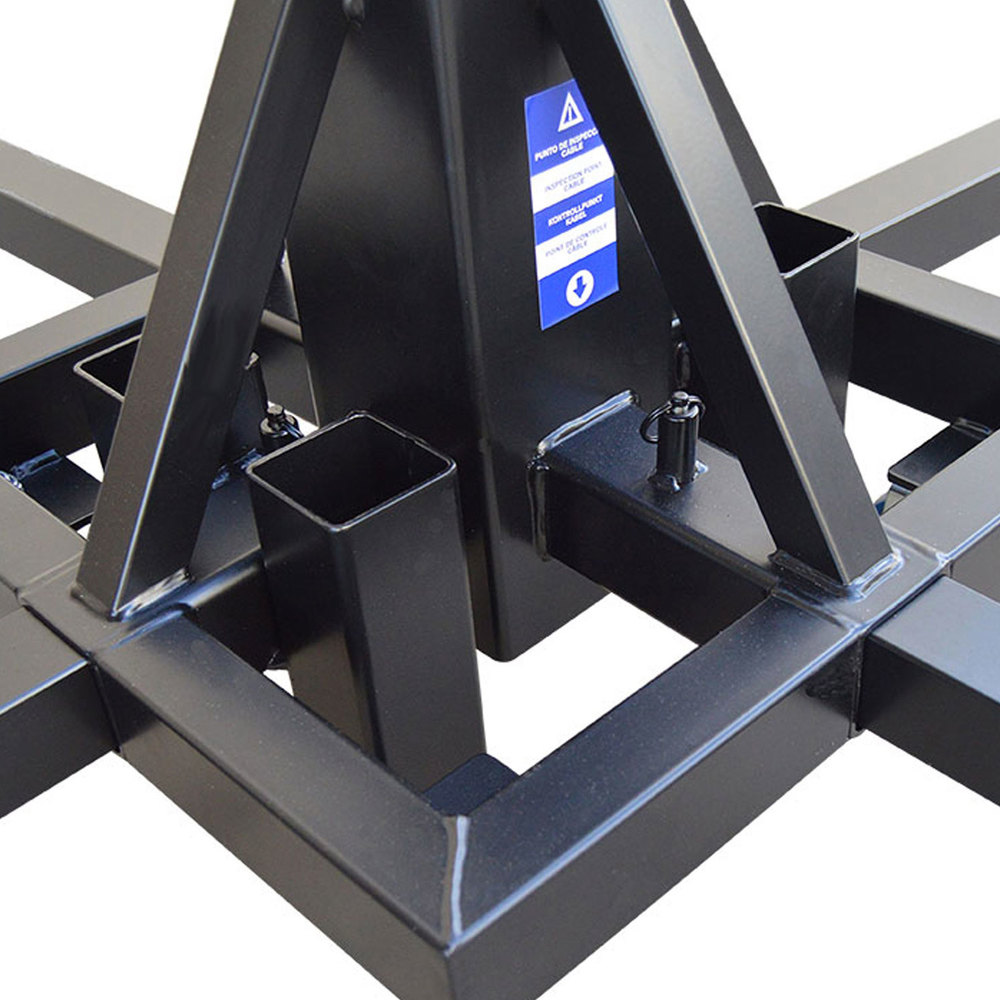

Wheels at the base of the tower.

Material Steel
Unfolded base 460 x 460 mm / 1.51 x 1.51 ft
Maximum height 6.5 m / 21.33 ft
Minimun height 1.80 m / 5.91 ft
Unfolded base diameter 2.52 m / 8.27 ft
No. of sections 5
Maximum Load 220 Kg / 485.02 Lb
Minimum Load 25 Kg / 55.12 Lb
Net Weight 93.4 Kg / 205.91 Lb
Winch 500 Kg / 1102.31 Lb
Noise Emission 72 dB
Compatible accessories AW 135, AW 235, AW 335, AW 535, AW 12
Standards and Certifications DIN 56950
Colour Black
