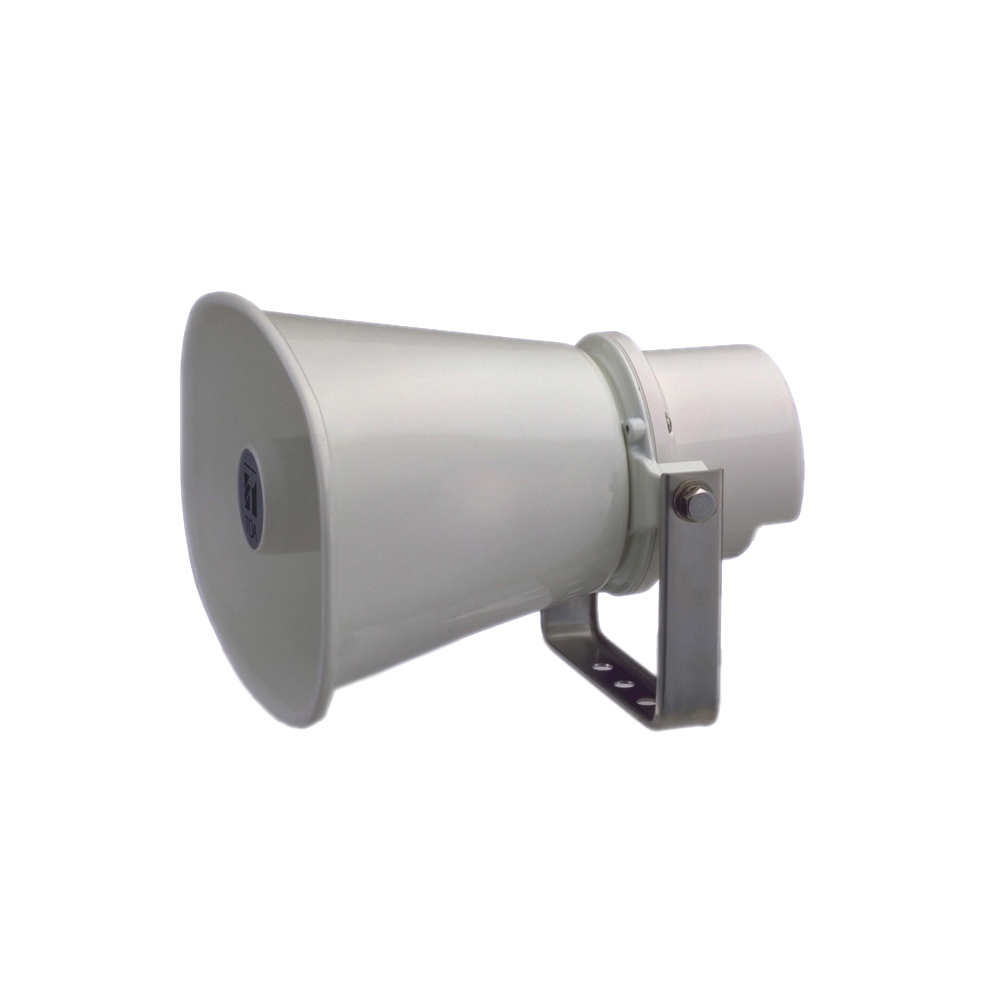

TOA HORN SPEAKER 70V/100V 15W/15W 112dB IP-65

TOA's SC-615M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

Spec Rated Input 15 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 670 ohms (15 W), 1 kohms (10 W), 2 kohms (5 W), 3.3 kohms (3 W)
70 V line: 330 ohms (15 W), 670 ohms (7.5 W), 1 kohms (5 W),
2 kohms (2.5 W), 3.3 kohms (1.5 W)
Sound Pressure Level 112 dB (1 W, 1 m at 500 to 2,500 Hz peak level)
Frequency Response 280 - 12,500 Hz
Sensitivity when used as Microphone (0 dB=1 mW/10 dynes/cm ) -22 dB at 1 kHz
Water Protection IP65
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 222 (W) x 179 (H) x 234 (D) mm
