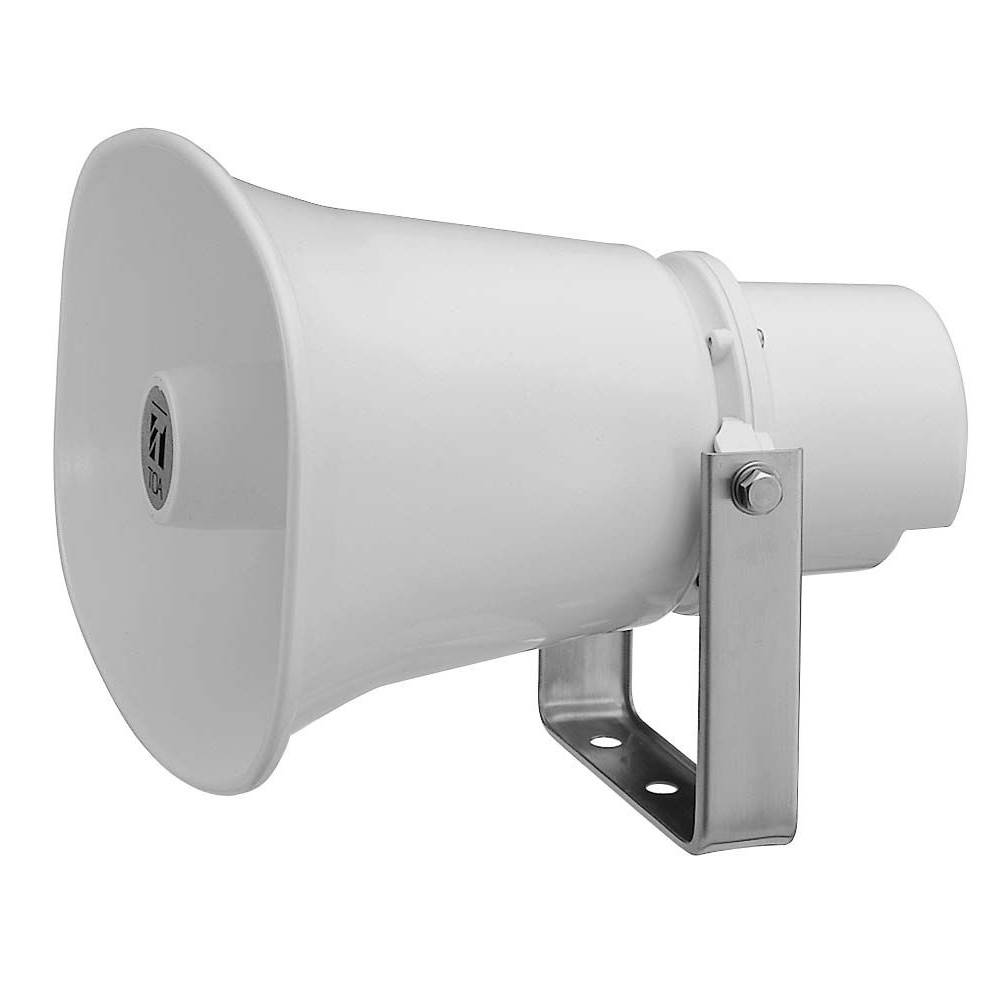

TOA HORN SPEAKER 70V/100V 30W 113dB IP-65

TOA's SC-630M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

Spec Rated Input 30 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 330 ohms (30 W), 670ohms (15 W), 1 kohms (10 W), 2 kohms (5 W)
70 V line: 170 ohms (30 W), 330 ohms (15 W), 670 ohms (7.5 W),
1 kohms (5 W), 2 kohms (2.5 W)
Sound Pressure Level 113 dB (1 W, 1 m at 500 to 2,500 Hz peak level)
Frequency Response 250 - 10,000 Hz
Sensitivity when used as Microphone (0 dB=1 mW/10 dynes/cm ) -20 dB at 1 kHz
Water Protection IP65
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white

Dimensions 285 (W) x 227 (H) x 277 (D) mm
